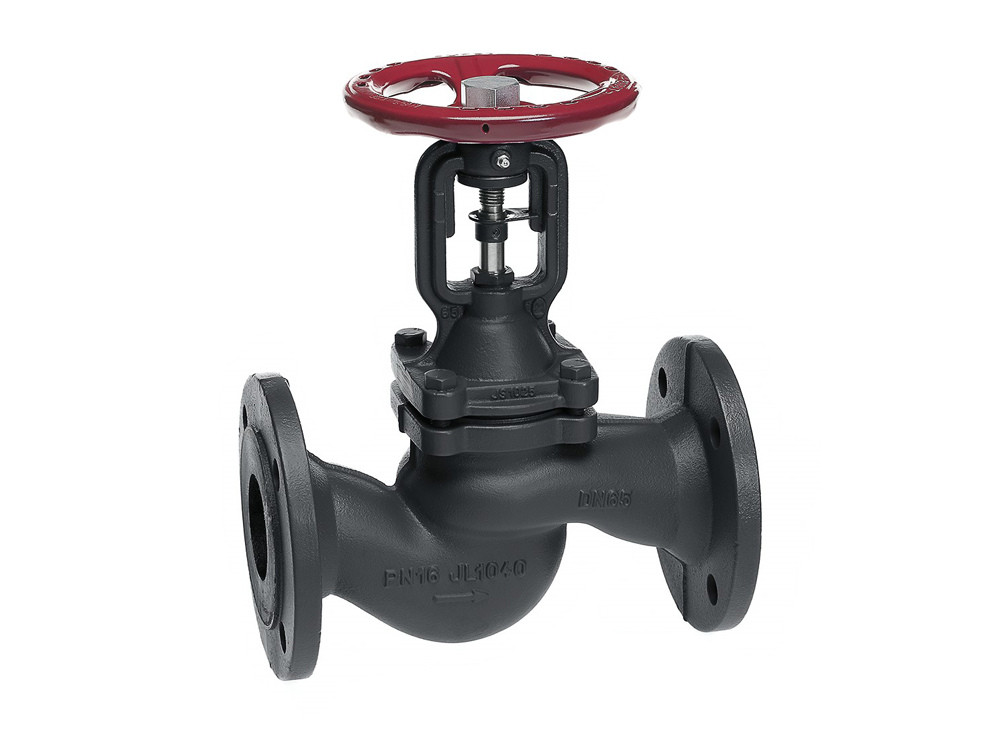

Specifications

• Type

  Globe

• Other characteristics

  Double wall bellows, no rising stem

• Application

  Steam,
  Cold and hot water,
  Gases,
  Other process fluids

• Body material

  Cast iron

• Max. allowable pressure

  16 bar at 120 ºC

• Max. allowable temperature

  300 ºC at 9,6 bar

• Seal material

  Metal (standart),
  PTFE valve sealing: 180 ºC

• Flow rate

  Max.: Kvs 725 m³/h,
  Min.: Kvs 5,9 m³/h

• Operation

  With handwheel

• Connections

  Flanged EN 1092-2 PN 16,
  Others on request.
