Specifications

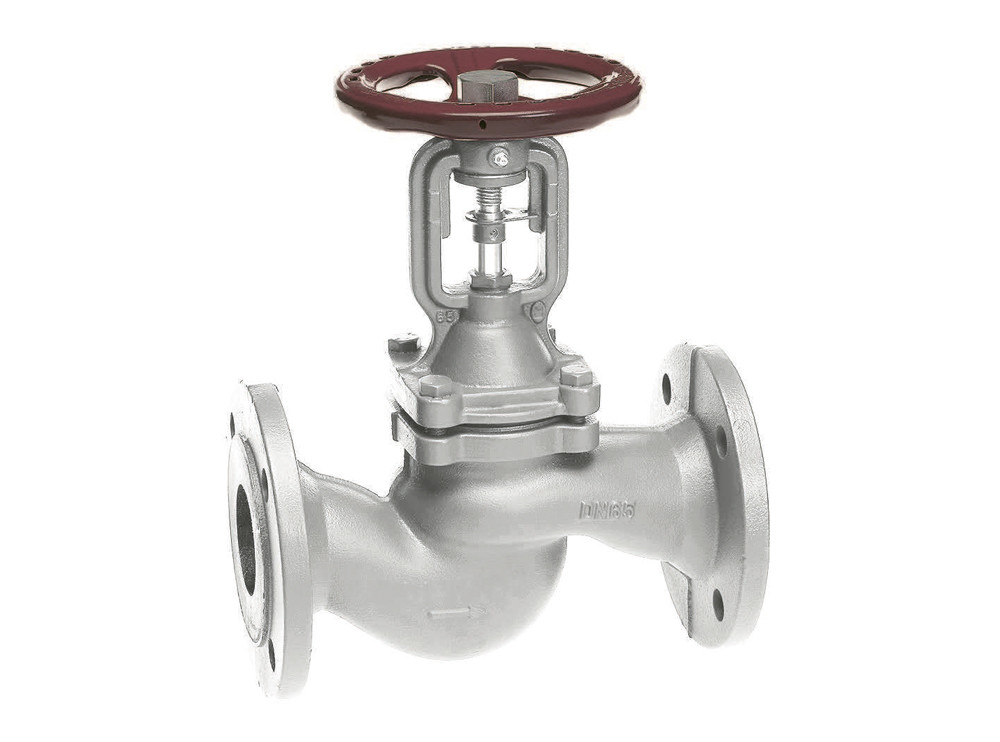

• Type

  Globe

• Other characteristics

  Double wall bellows, no rising stem

• Application

  Steam,
  Cold and hot water,
  Gases,
  Other process fluids

• Materials

  Stainless steel body & seats

• Max. allowable pressure

  40 bar at -10 / 50 ºC

• Max. allowable temperature

  300 ºC at 32,5 bar

• Seal material

  Metal

• Flow rate

  Max.: Kvs 364 m³/h,
  Min.: Kvs 4,3 m³/h

• Operation

  With handwheel

• Connections

  Flanged EN 1092-1 PN 40
