ICP Valves
Specifications
-
Type
Globe
-
Other characteristics
Double wall bellows, no rising stem
-
Application
No corrosive or no toxic fluids,
Steam,
Hydrocarbons -
Body material
Nodular Iron body,
Stainless steel bellow -
Max. allowable pressure
16 bar
-
Max. allowable temperature
350 ºC
-
Seal material
Metal
-
Flow rate
Max.: Kv 670 m³/h,
Min.: Kv 60 m³/h -
Operation
With handwheel
-
Connections
Flanged EN-1092 PN 16

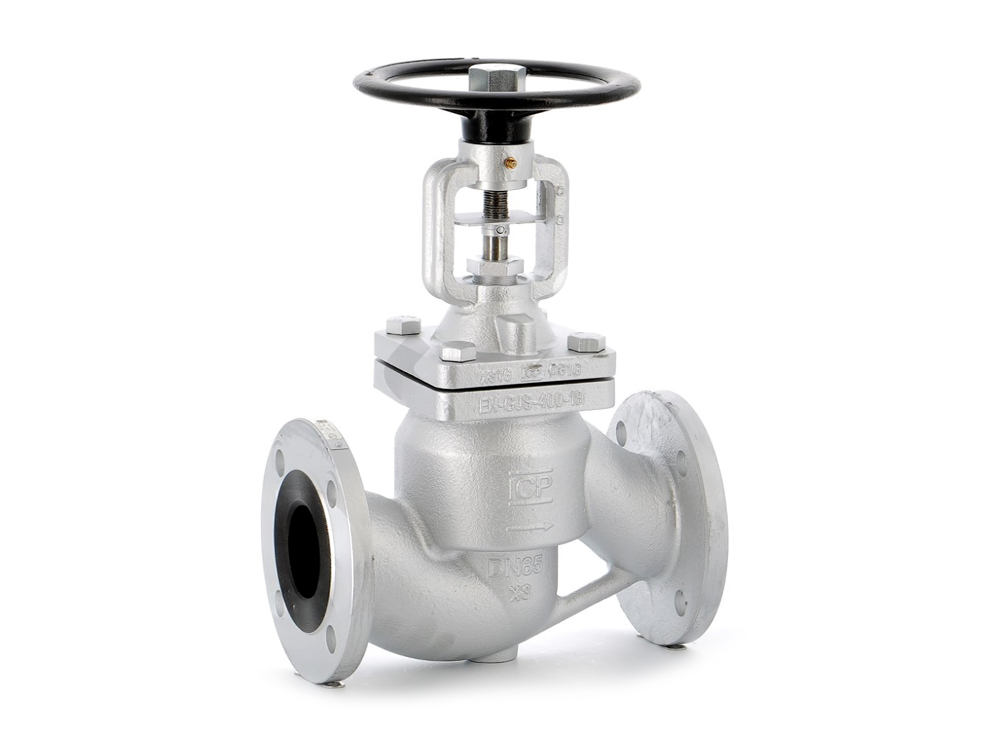

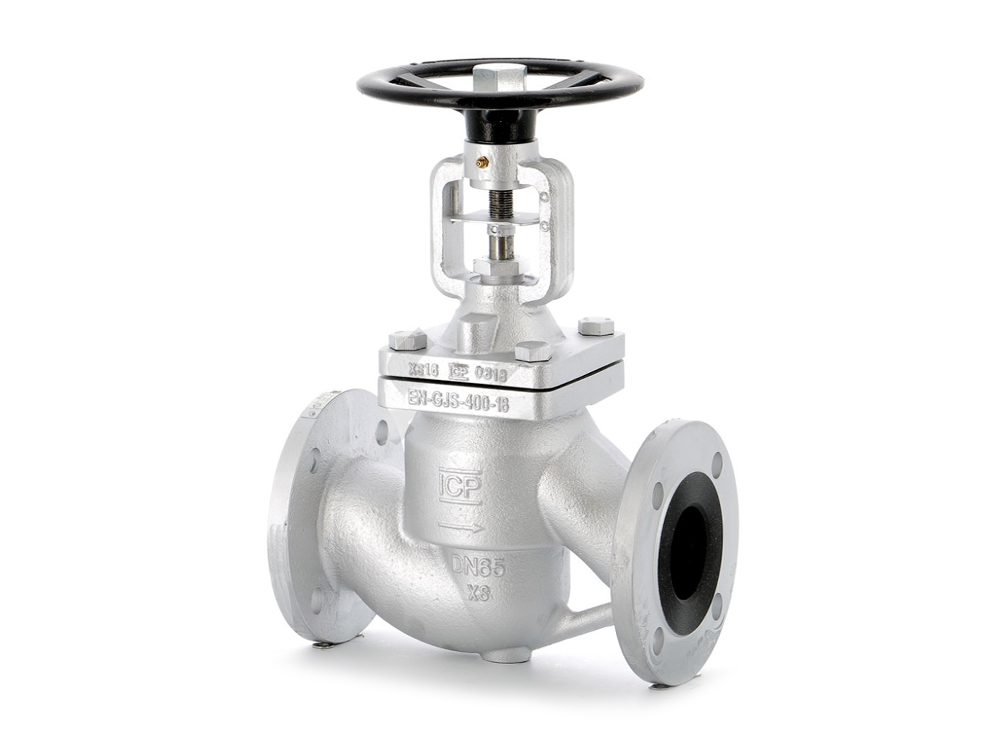

Bellows sealed globe valve ICP BGV216
Product code: BGV216.000
Available on request
Price according to configuration
