ICP Valves

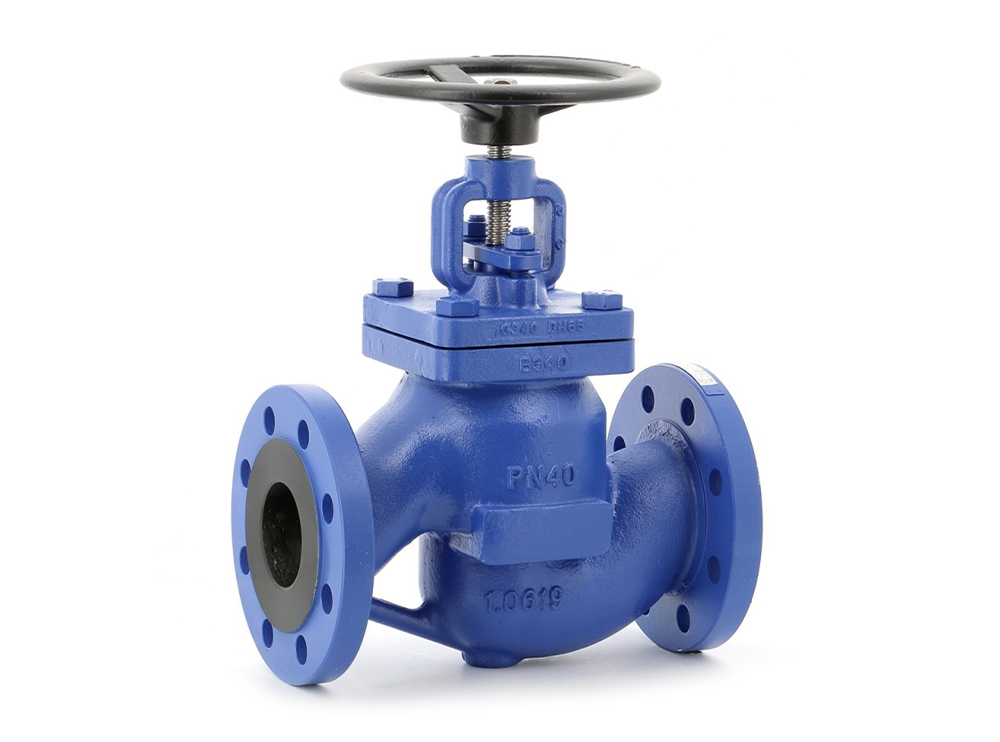

Globe valve ICP GV340 with gland packing

Specifications

Type

Globe
Other characteristics

Gland packing, rising stem and handwheel
Application

No corrosive or no toxic fluids,
Steam,
Hydrocarbons
Body material

Carbon steel body,
Stainless steel stem and seat
Max. allowable pressure

40* bar,
* 20 bar max for DN125, 15 bar max for DN150, 19 bar max for DN200
Max. allowable temperature

400 ºC
Seal material

Metal (standart),
soft valve sealing on request
Flow rate

Max.: Kvs 675 m³/h,
Min.: Kvs 4 m³/h
Operation

With handwheel
Connections

Flanged EN-1092 PN 40

Globe valve ICP GV340 with gland packing

Product code: GV340.000

Available to Order

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Globe valve ICP GV340 with tightened gland packing

The valve’s stem and seat is made from stainless steel It follows the flow direction indicated by the arrow. The valve is also made with rising rotating stem and handwheel, and is made primarily for common fluids from the second group, but not to be used for thermic fluids. The stem of this valve must always be kept greased. Other features include bolted bonnet and tightened gland packing during setting.

Carbon steel globe valve flanged PN40 for setting or closing on networks of Heating, water distribution and watering. Graphite packing an gasket. Bolted bonnet and packing for an easy maintenance.
