Butterfly valves double flanged
Refine
- 10 products per page
- 25 products per page
- 50 products per page
- Relevance
- Created at
- Product code
- Name
- Available
-
TTV Valves
Product code: 10H9020E0
TTV Butterfly Valve 10H9020E0 PN16 Double Flanged type Cast Iron body / Ductile Iron disc / EPDM seat with locakble lever operated
-
Applications
Cold and hot water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
EPDM
-
Working temperature
-20°C up to +110°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

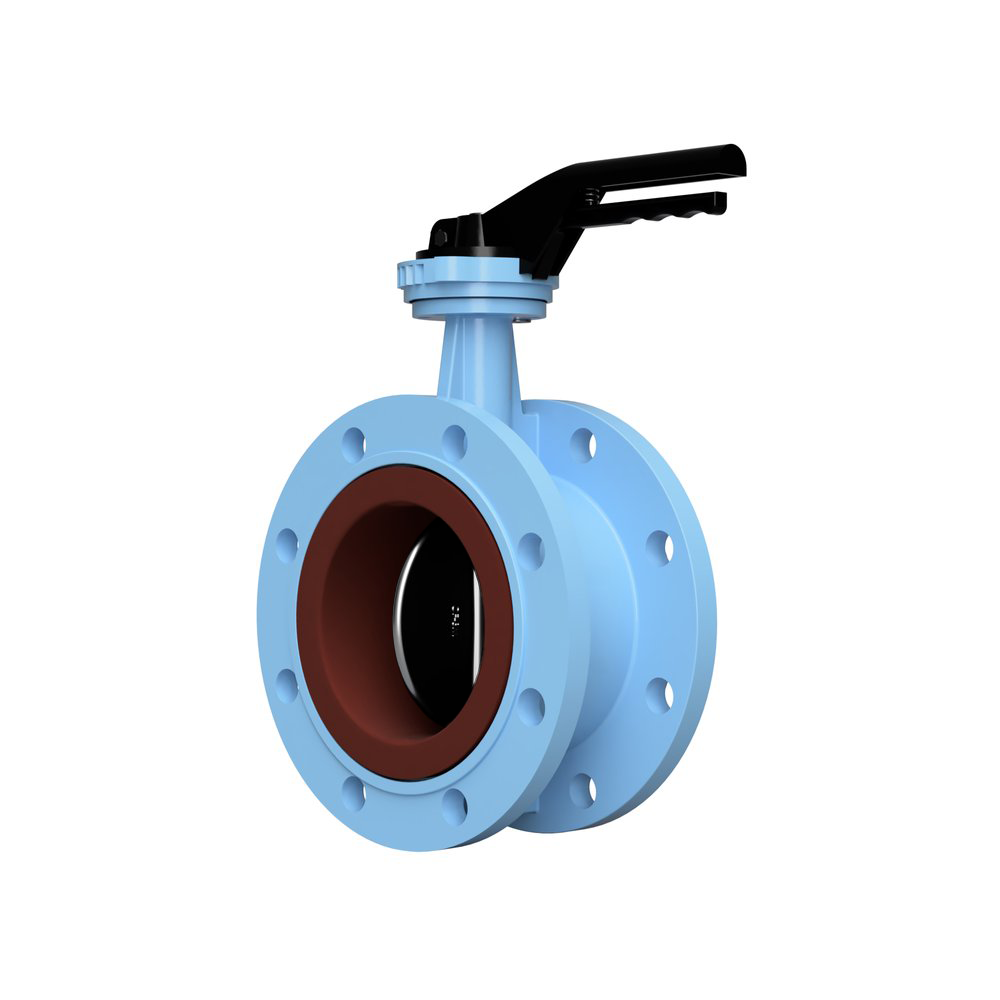

Product code: 10H9020S0
TTV Butterfly Valve 10H9020S0 PN16 Double Flanged type Cast Iron body / Ductile Iron disc / Silicone seat with locakble lever operated
-
Applications
Cold and hot water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
Silicone (VQM)
-
Working temperature
-30°C up to +150°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

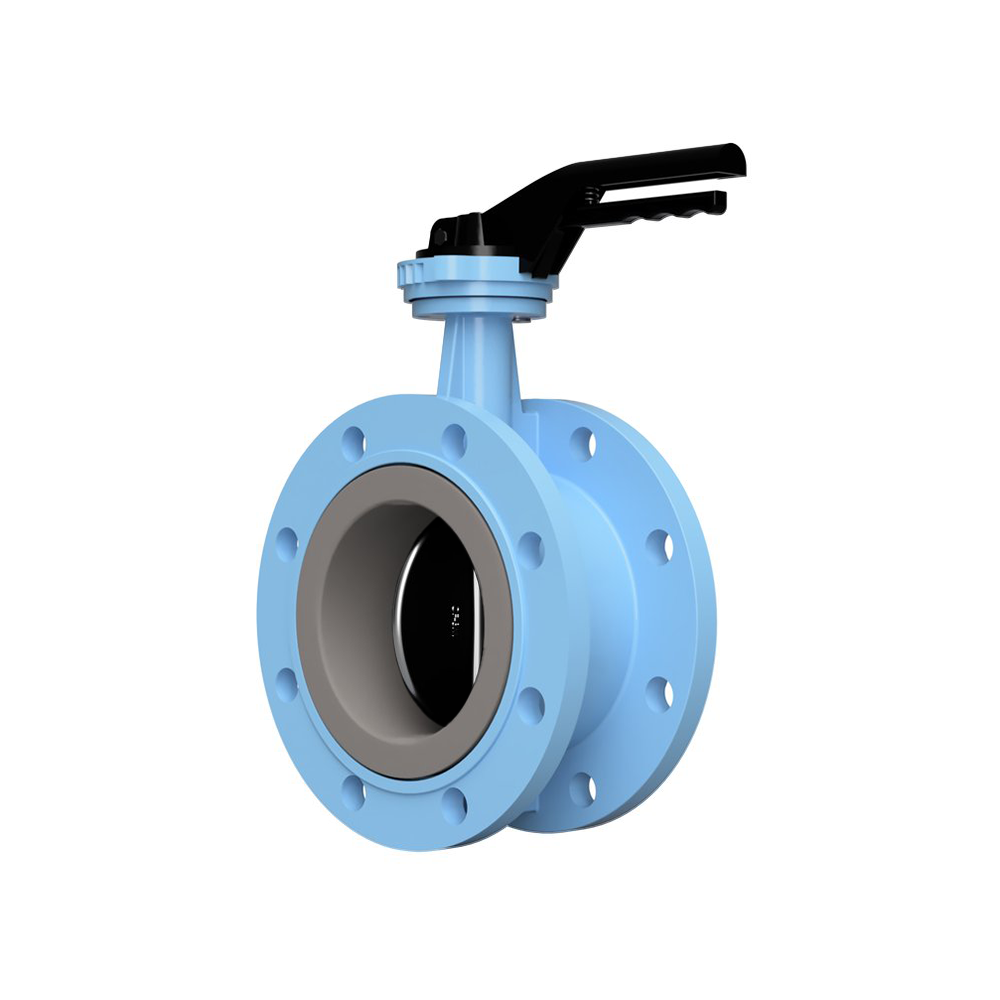

Product code: 10H9020ST
TTV Butterfly Valve 10H9020ST PN16 Double Flanged type Cast Iron body / Ductile Iron disc / High Temperature Silicone seat with locakble lever operated
-
Applications
Super Heated Water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
High Temp Silicone
-
Working temperature
-50°C up to +160°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

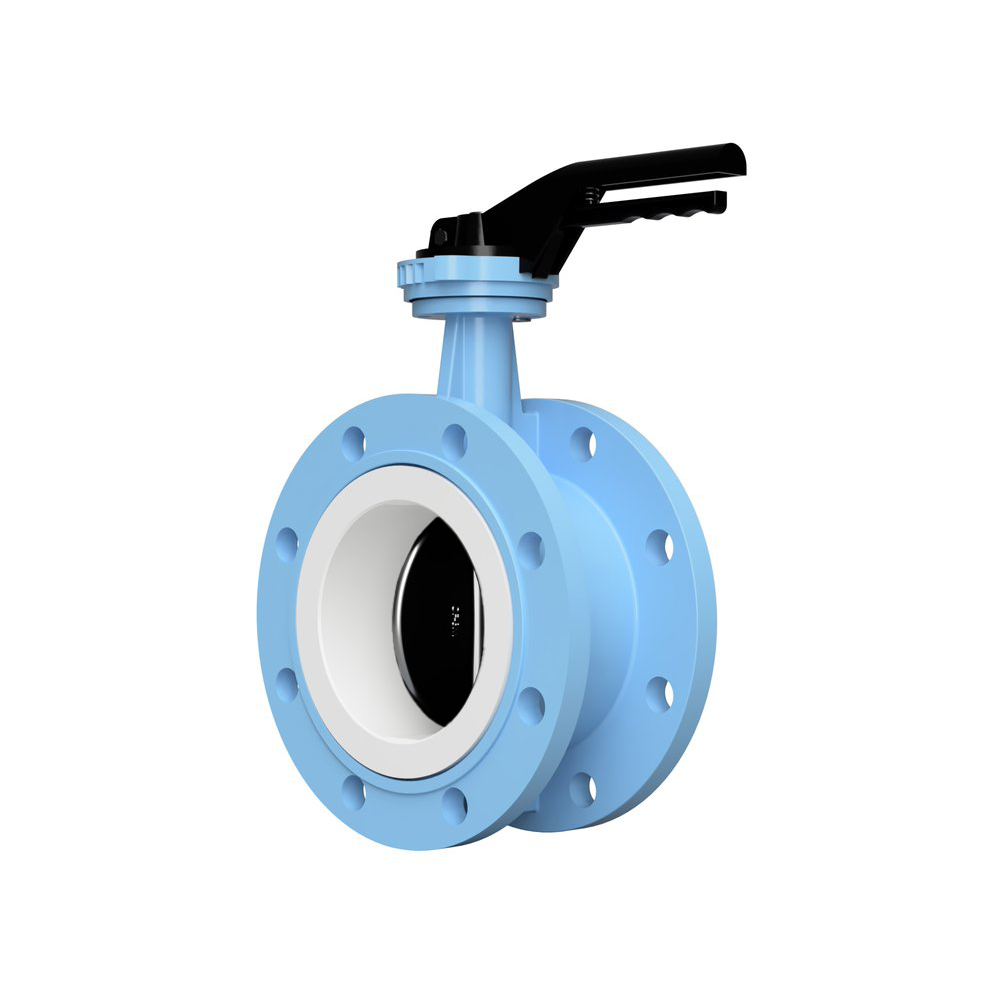

Product code: 10H9020SA
TTV Butterfly Valve 10H9020SA PN16 Double Flanged type Cast Iron body / Ductile Iron disc / Food Safe Silicone seat with locakble lever operated
-
Applications
Cold and hot water, drinkable water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
Food Safe Silicone
-
Working temperature
-30°C up to +150°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves
Product code: 10H9020ET
TTV Butterfly Valve 10H9020ET PN16 Double Flanged type Cast Iron body / Ductile Iron disc / High Temperature EPDM seat with locakble lever operated
-
Applications
Super Heated Water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
High Temperature EPDM
-
Working temperature
-20°C up to +130°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

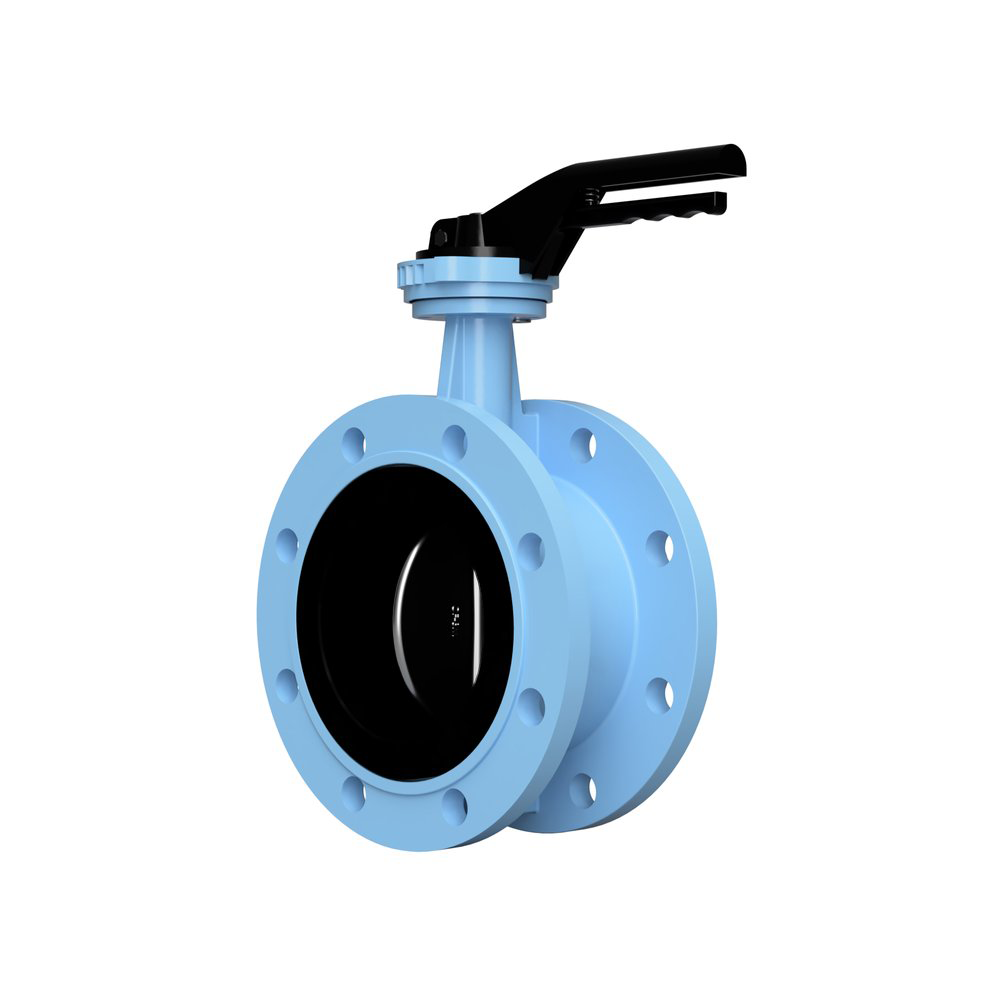

Product code: 10H9020N0
TTV Butterfly Valve 10H9020N0 PN16 Double Flanged type Cast Iron body / Ductile Iron disc / NITRILE NBR seat with locakble lever operated
-
Applications
Mineral & Vegetable Oils, Gas, Animal Fats, Vegetable Fats, Air
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
NITRILE NBR
-
Working temperature
-10°C up to +80°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves
Product code: 10H9020V0
TTV Butterfly Valve 10H9020V0 PN16 Double Flanged type Cast Iron body / Ductile Iron disc / Viton FKM seat with locakble lever operated
-
Applications
Fats, Hydrocarbons, Vegetable & Mineral Oils
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Cast Iron EN-GJL-250
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Seat material
Viton FKM
-
Working temperature
-5°C up to +180°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves
Product code: 20H3040E0
TTV Butterfly Valve 20H3040E0 PN16 Double Flanged type Ductile Iron body / CF8M disc / EPDM seat with locakble lever operated
-
Applications
Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Stainless steel CF8M (1.4408)
-
Seat material
EPDM
-
Working temperature
-20°C up to +110°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

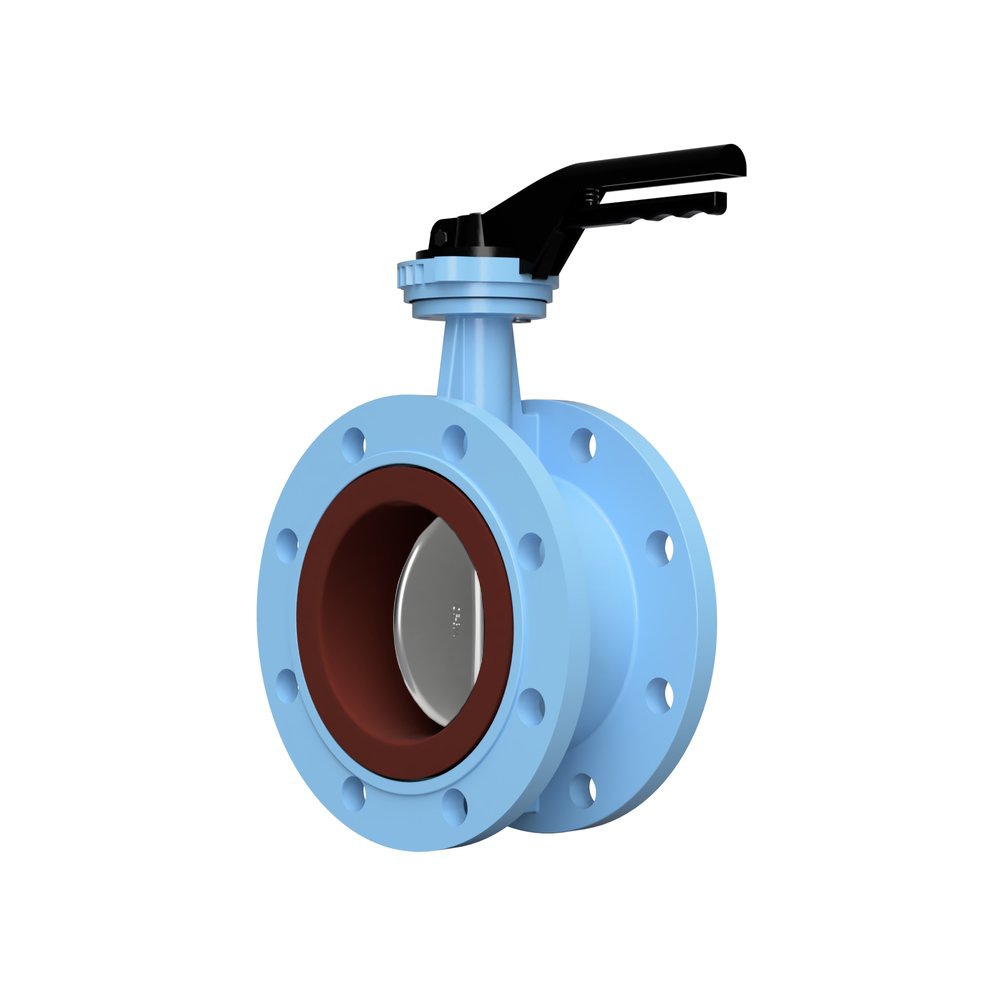

Product code: 20H3040S0
TTV Butterfly Valve 20H3040S0 PN16 Double Flanged type Ductile Iron body / CF8M disc / Silicone seat with locakble lever operated
-
Applications
Low & High Temperature Resistance Applications
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Stainless steel CF8M (1.4408)
-
Seat material
Silicone (VQM)
-
Working temperature
-30°C up to +150°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

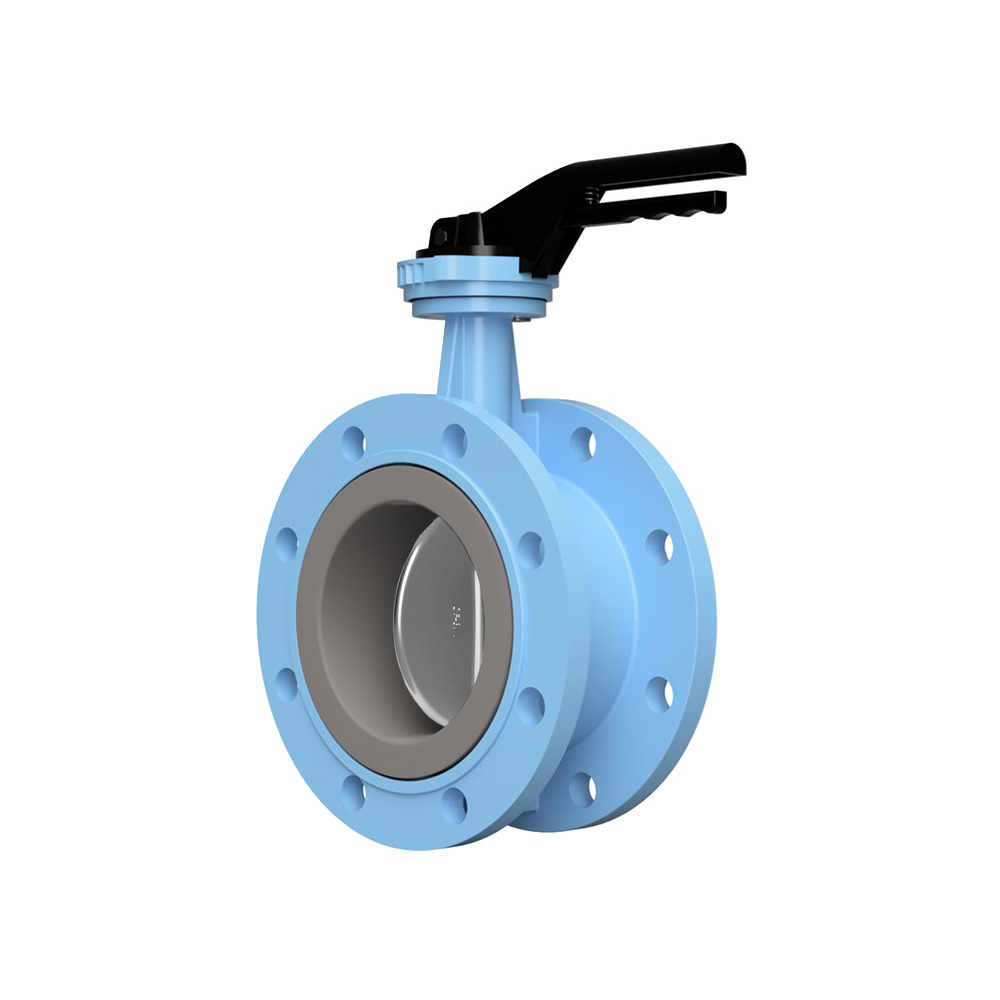

Product code: 20H3040ST
TTV Butterfly Valve 20H3040ST PN16 Double Flanged type Ductile Iron body / CF8M disc / High Temperature Silicone seat with locakble lever operated
-
Applications
Super Heated Water
-
Max. operating pressure
16 bar up to DN300 , 10 bar over
-
Body Design
Double Flanged
-
Seat Design
Concentric, Soft Seat
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Stainless steel CF8M (1.4408)
-
Seat material
High Temperature Silicone
-
Working temperature
-50°C up to +160°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Flanged DIN 2501 & EN 1092-1 PN10/16,
Flanged Class 150 on request (drilled from EN casting).
Dimension:
DN32 – DN600Price according to configurationAvailable on requestMore about the product -
