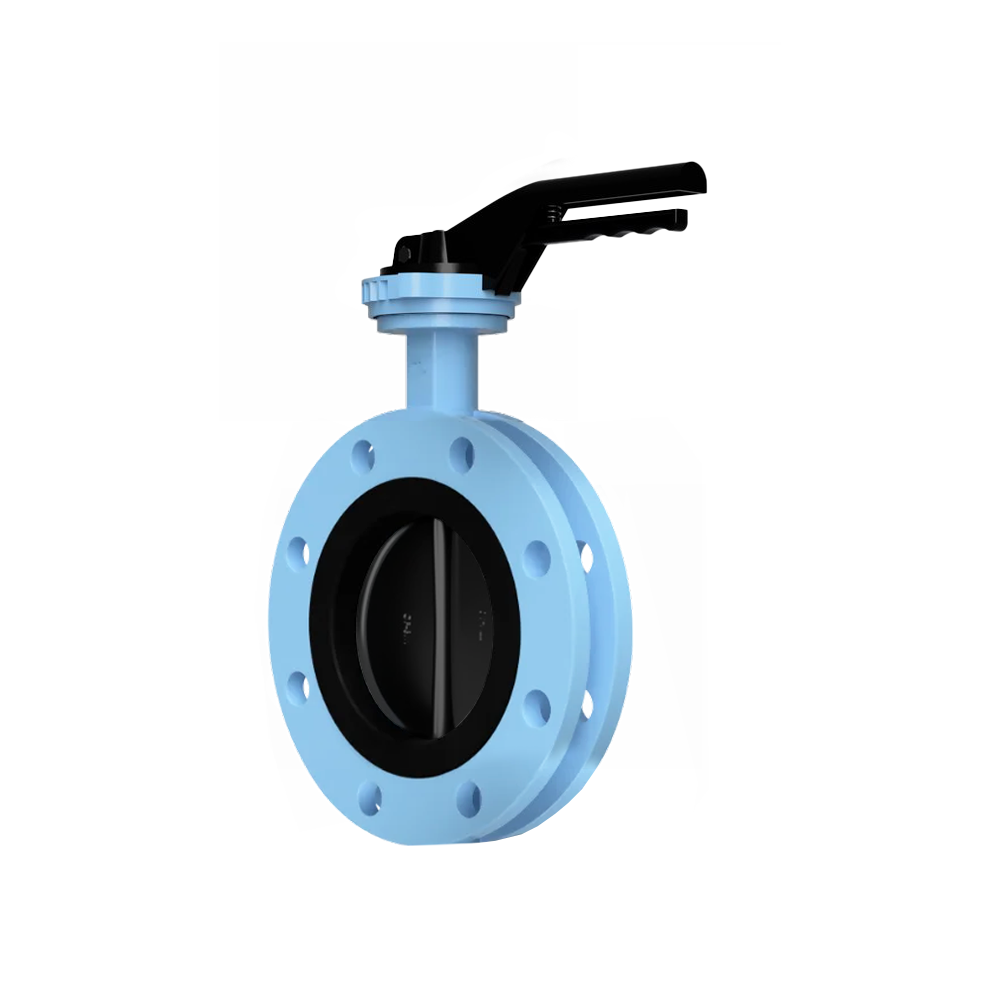

TTV Butterfly Valve 10B9020E0 PN16 Flanged type Cast Iron body / Ductile Iron disc / EPDM seat with locakble lever operated

Specifications

Applications

Cold and hot water
Max. operating pressure

16 bar up to DN300 , 10 bar over
Body Design

Flanged
Seat Design

Concentric, Soft Seat
Body material

Cast Iron EN-GJL-250
Disc materials

Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
Seat material

EPDM
Working temperature

-20°C up to +110°C
Actuator Type

Lever Operated, Hand Wheel
Connections

Flanged* DIN 2501 & EN 1092-1 PN10/16,
*Flanged Class 150 on request (drilled from EN casting).
