TTV Valves

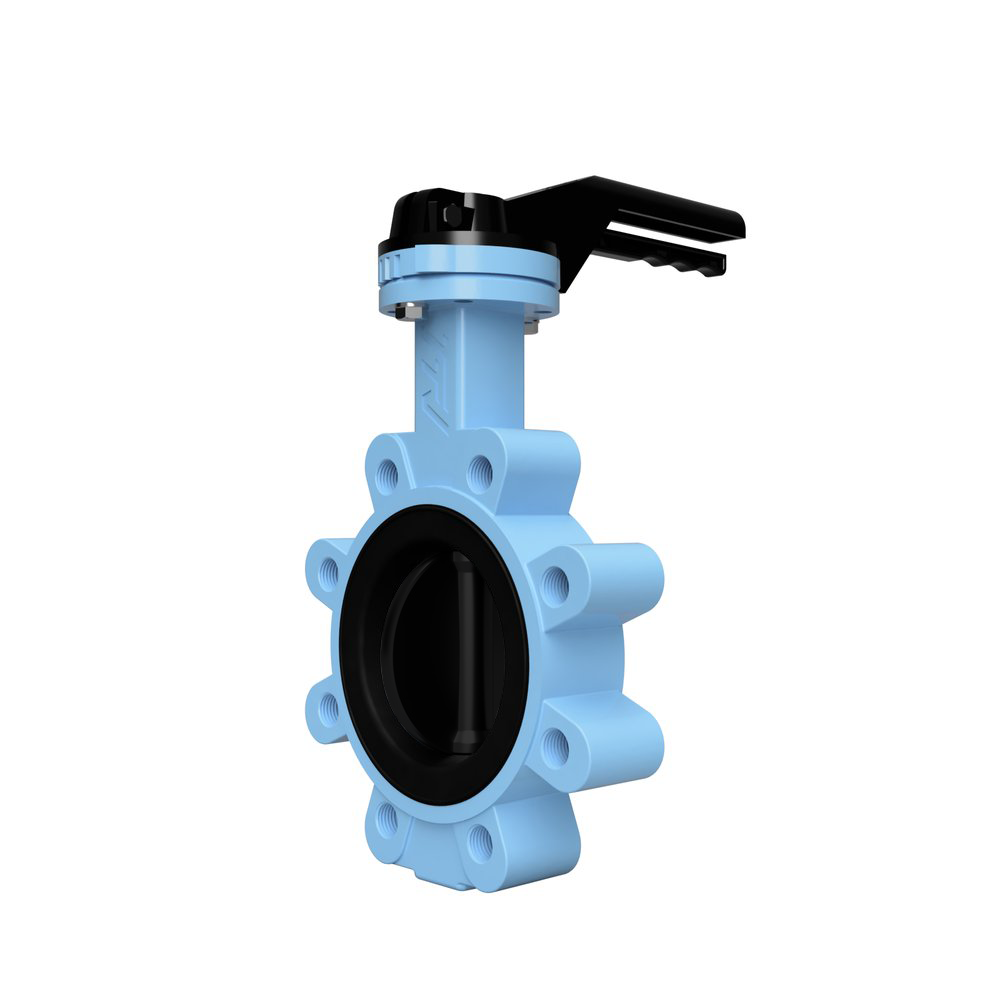

TTV Butterfly Valve 10L9020E0 PN16 Lug type Cast Iron body / Ductile Iron disc / EPDM seat with locakble lever operated

Specifications

  • Applications

    Cold and hot water

  • Max. operating pressure

    16 bar up to DN300 , 10 bar over

  • Body Design

    Lug

  • Seat Design

    Concentric, Soft Seat

  • Body material

    Cast Iron EN-GJL-250

  • Disc materials

    Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan

  • Seat material

    EPDM

  • Working temperature

    -20°C up to +110°C

  • Actuator Type

    Lever Operated, Hand Wheel

  • Connections

    Sandwiched between flanges as per DIN 2501 PN10/16

TTV Butterfly Valve 10L9020E0 PN16 Lug type Cast Iron body / Ductile Iron disc / EPDM seat with locakble lever operated

Product code: 10L9020E0

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

The TTV 10L9020 is a remarkable selection in the TTV range, recognized for its superb cost-effectiveness and intelligent conception. Its premium GJS500 Cast Iron disc and rubber seat-lining afford strong resilience to a broad spectrum of materials and heat levels, boosting its total worth. Moreover, the outer cast iron housing not only guards against usual exposure effects but also assists in its prolonged operational life, rendering it a prudent outlay. Furthermore, the provision of a closable lever actuator as a regular element in the 10L9020 further improves its financial attractiveness, presenting a dependable and affordable answer for diverse uses.
