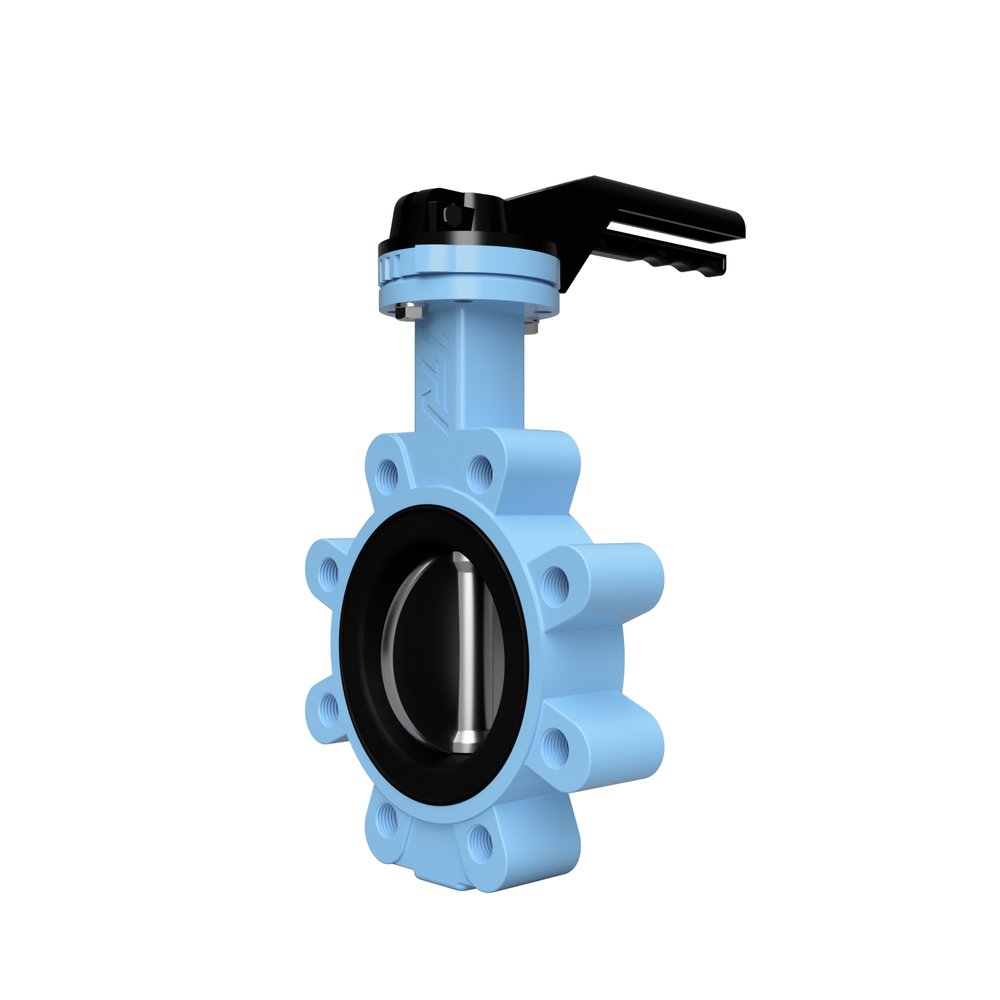

TTV Butterfly Valve 20L3040E0 PN16 Lug type Ductile Iron body / CF8M disc / EPDM seat with locakble lever operated

Specifications

  • Applications

    Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines

  • Max. operating pressure

    16 bar up to DN300 , 10 bar over

  • Body Design

    Lug

  • Seat Design

    Concentric, Soft Seat

  • Body material

    Ductile Iron EN-GJS-500-7

  • Disc materials

    Stainless steel CF8M (1.4408)

  • Seat material

    EPDM

  • Working temperature

    -20°C up to +110°C

  • Actuator Type

    Lever Operated, Hand Wheel

  • Connections

    Sandwiched between flanges as per DIN 2501 PN10/16

TTV Butterfly Valve 20L3040E0 PN16 Lug type Ductile Iron body / CF8M disc / EPDM seat with locakble lever operated

Product code: 20L3040E0

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

The 20L3040 are often employed in piping setups as a terminal point Valve or where routine/anticipated disconnection of the conduit on either aspect might need to be taken away for upkeep and fitting without interruption to both sides of the conduit. The solitary piece casing with screwed lugs is fitted using two groupings of bolts (One grouping for each facing) and permits the fitter accurate self locating facilities of the valve owing to the casing design between facings. This valve, with its concentric makeup and renewable seating that assumes the form of both sides to create an ideal closure. This is apt for utilisation on either an off or restrictor setting in uses where you desire total versatility for warmth or current.
