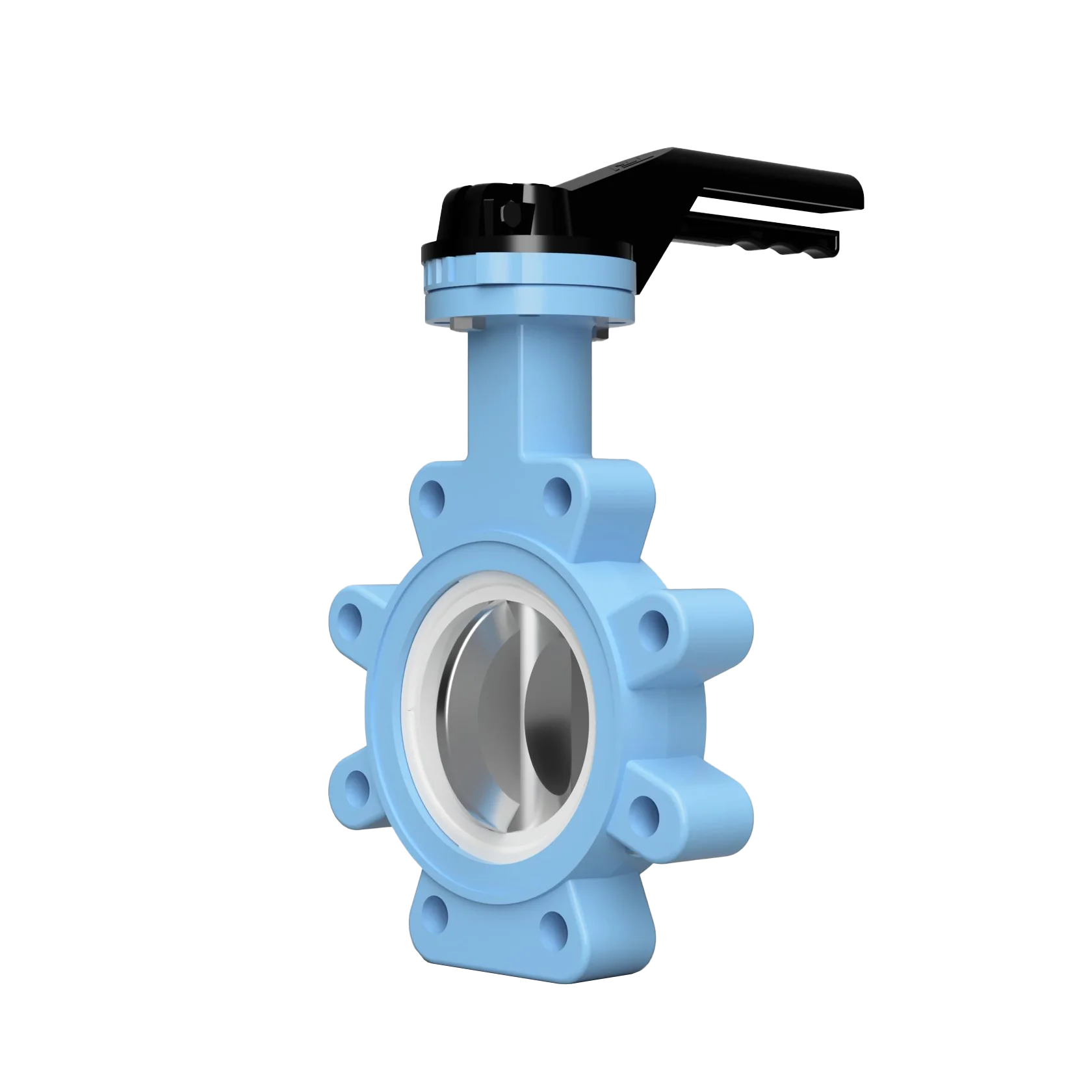

Split-body Butterfly Valve TTV 20LP4040F0 PN16 Lug type Ductile Iron body / CF8M disc / PTFE seat with locakble lever operated
TTV Valves
Specifications
-
Applications
Pharmaceuticals, pure water, toxic chemicals
-
Max. operating pressure
16 bar up to DN200 , 12 bar over
-
Body Design
Lug, Split-body
-
Seat Design
Concentric, Soft Seat
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Stainless steel CF8M (1.4408)
-
Seat material
PTFE FDA-approved (*),
* Suitable for toxic and highly corrosive environments. -
Working temperature
-40°C up to +220°C
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Sandwiched between flanges as per DIN 2501 PN10/16
Split-body Butterfly Valve TTV 20LP4040F0 PN16 Lug type Ductile Iron body / CF8M disc / PTFE seat with locakble lever operated
Product code: 20LP4040F0
Available on request
Price according to configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)
Quantity
-
+
