Axial (disc) check valves

Refine

Show:

10 per page

10 products per page
25 products per page
50 products per page

Sort:

Relevance

Relevance
Created at
Product code
Name
Available

Valsteam ADCA

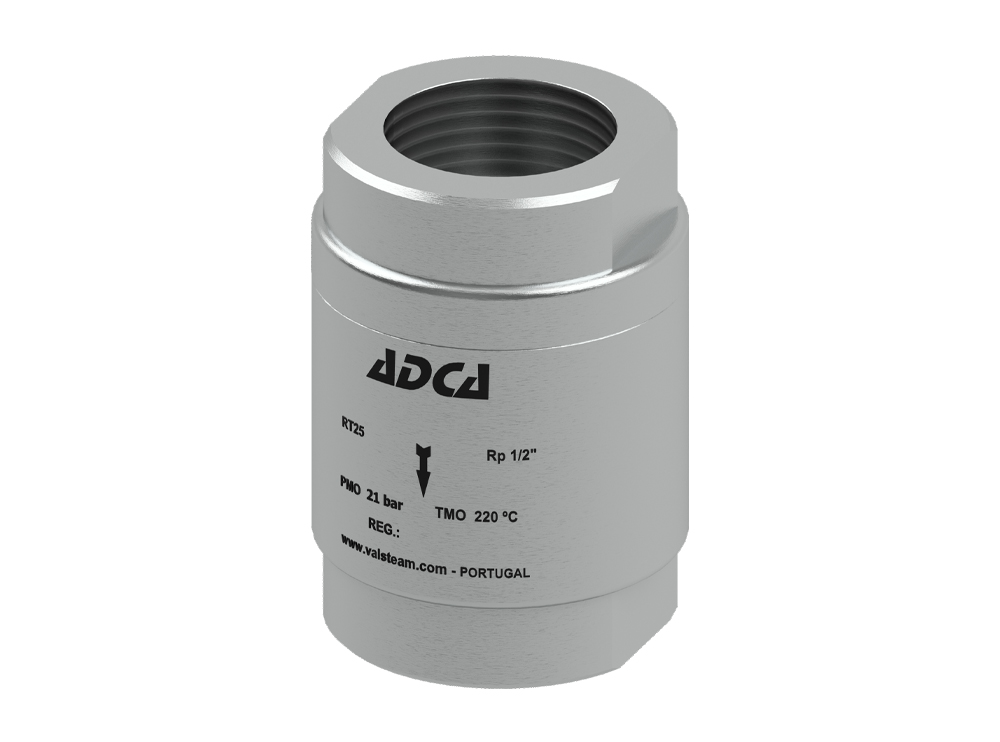

Product code: A.61.1100.000
Disc check valve ADCA RT25 PN25
- Application

  Saturated steam,
  Cold and hot water,
  Gases,
  Other process fluids
- Body design

  Spring Check
- Body material

  Stainless steel
- Max. operating pressure

  21 bar
- Max. operating temperature

  Metal to metal sealing: 220 ºC (standart),
  PTFE valve sealing: 180 ºC,
  VITON valve sealing: 180 ºC,
  EPDM valve sealing: 130 ºC,
  NBR valve sealing: 95 ºC
- Seal material

  Metal to metal; EPDM; NBR; VITON; PTFE
- Connections

  Female threaded ISO 7 Rp A,
  Female threaded NPT, on request.
Dimension:
1/4” – 2”; DN08–DN50

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

Product code: A.61.1140.000
Wafer-type disc check valve ADCA RD40 PN40
- Application

  Saturated steam,
  Cold and hot water,
  Gases,
  Other process fluids
- Body design

  Wafer Spring
- Body material

  Stainless steel
- Max. allowable pressure

  40 bar at 100 ºC
- Max. allowable temperature

  300 ºC at 29,7 bar
- Max. operating temperature

  Metal to metal sealing: 300 ºC (standart),
  PTFE valve sealing: 180 ºC,
  FPM valve sealing: 180 ºC,
  EPDM valve sealing: 130 ºC,
  NBR valve sealing: 95 ºC
- Seal material

  Metal to metal; EPDM; NBR; FPM; PTFE
- Connections

  Sandwiched between flanges as per EN 1092 PN 40,
  Sandwiched between flanges as per ASME, on request.
Dimension:
1/2” – 4”; DN15 – DN100

Price according to configuration

Available on request
More about the product
Valsteam ADCA

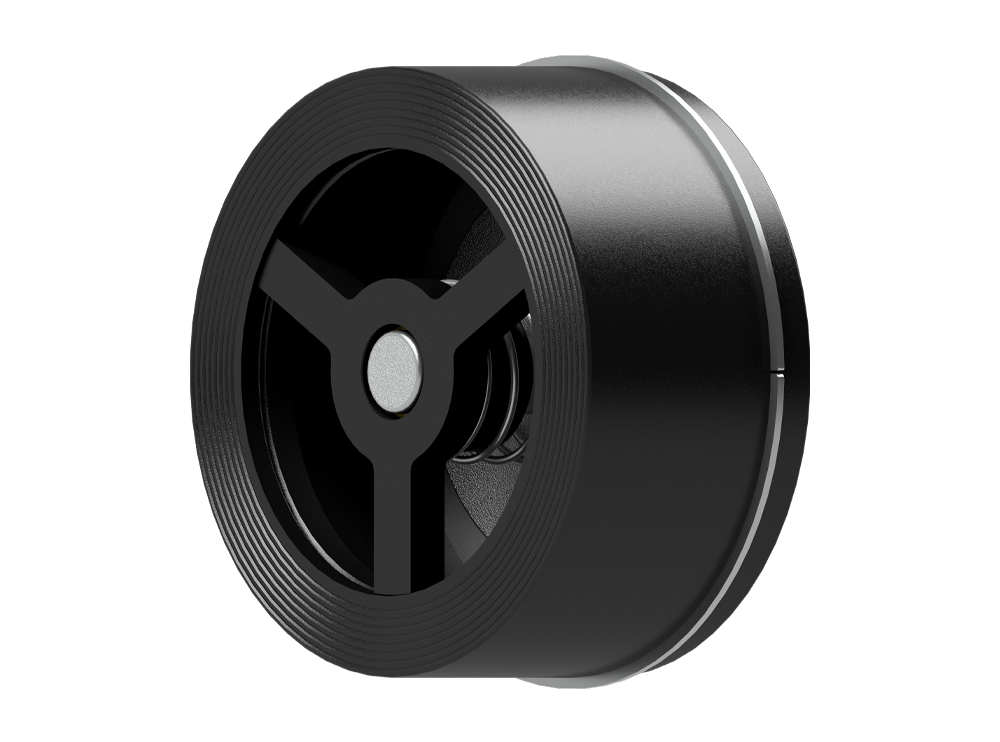

Product code: A.61.1150.000
Wafer-type disc check valve ADCA RD40 PN16/40
- Application

  Saturated steam,
  Cold and hot water,
  Gases,
  Other process fluids
- Body design

  Wafer Spring
- Materials

  Carbon steel body, stainless steel seat & disc
- Max. allowable pressure

  40 bar at 100 ºC
- Max. allowable temperature

  300 ºC at 29,7 bar
- Max. operating temperature

  Metal to metal sealing: 300 ºC (standart),
  PTFE valve sealing: 180 ºC,
  FPM valve sealing: 180 ºC,
  EPDM valve sealing: 130 ºC,
  NBR valve sealing: 95 ºC
- Seal material

  Metal to metal; EPDM; NBR; FPM; PTFE
- Connections

  Sandwiched between flanges as per EN 1092 PN 16 or PN 40,
  Sandwiched between flanges as per ANSI 150 lb or ANSI 300 lb
Dimension:
5” – 8”; DN125 – DN200

Price according to configuration

Available on request
More about the product
ICP Valves

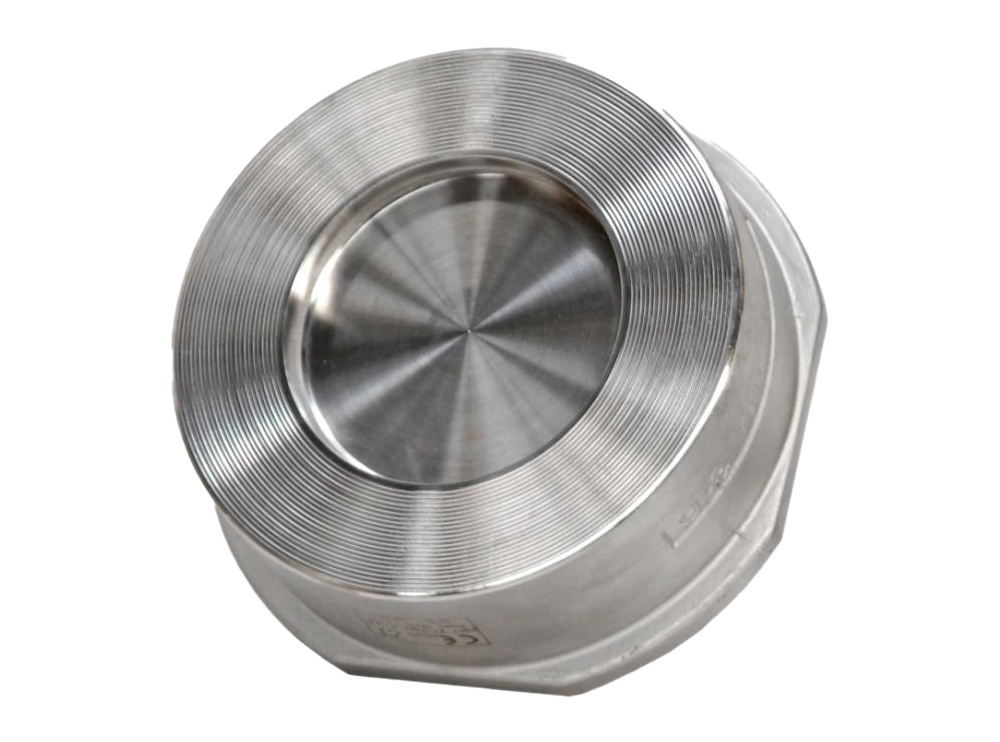

Product code: VR316.000
Wafer-type disc check valve ICP VR316 PN40
- Application

  Saturated steam,
  Cold and hot water,
  Gases,
  Other process fluids
- Body design

  Wafer Spring
- Materials

  Stainless steel body, seat & disc
- Max. allowable pressure

  40 bar
- Max. allowable temperature

  400 ºC
- Seal material

  Metal to metal
- Fit in between flanges

  Face to face dimensions as per EN 558-1 Series 49
- Connections

  Sandwiched between flanges as per EN 1092 PN 40
Dimension:
1/2” – 8”; DN15 – DN200

Price according to configuration

Available to Order
More about the product
