Public offer Prima Steam – Relible supplier equipment for your flow control!
Home → Catalogue → Pipeline ancillaries → Non-Return (Check) Valves → Disc check valve ADCA RT25 PN25
Valsteam ADCA

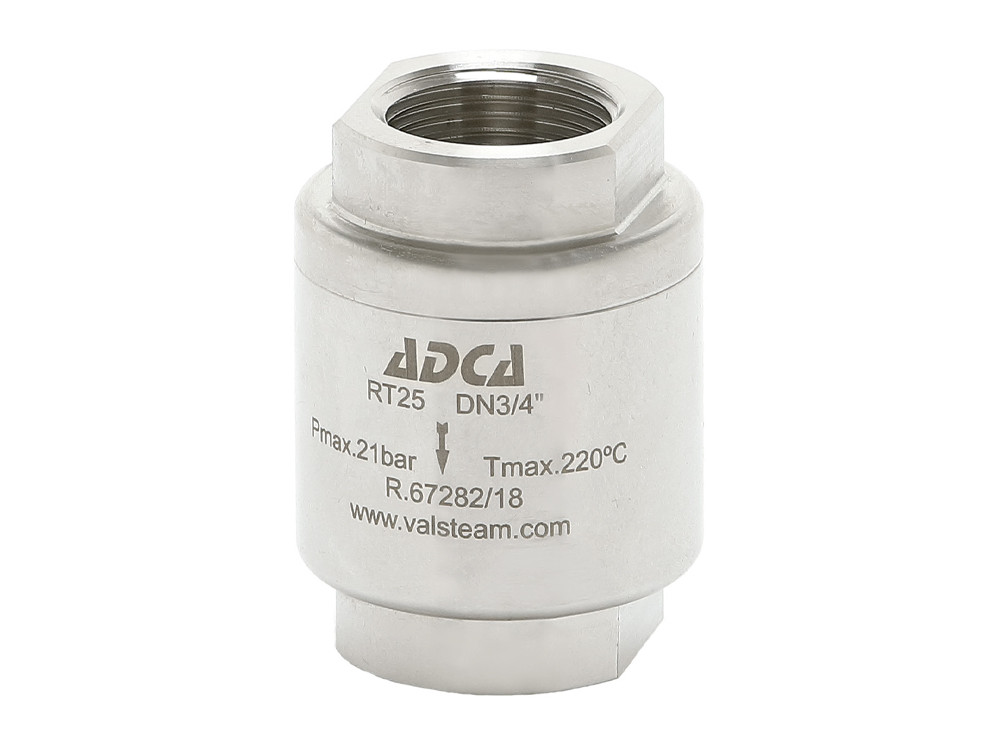

Disc check valve ADCA RT25 PN25

Specifications

  • Application

    Saturated steam,
    Cold and hot water,
    Gases,
    Other process fluids

  • Body design

    Spring Check

  • Body material

    Stainless steel

  • Max. operating pressure

    21 bar

  • Max. operating temperature

    Metal to metal sealing: 220 ºC (standart),
    PTFE valve sealing: 180 ºC,
    VITON valve sealing: 180 ºC,
    EPDM valve sealing: 130 ºC,
    NBR valve sealing: 95 ºC

  • Seal material

    Metal to metal; EPDM; NBR; VITON; PTFE

  • Connections

    Female threaded ISO 7 Rp A,
    Female threaded NPT, on request.

Disc check valve ADCA RT25 PN25

Product code: A.61.1100.000

Available to Order

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Disc non-return valve / Check Valve ADCA RT25 for High Temperature

RT25 – stainless steel.

The ADCA RT25 all stainless steel disc check valves have a compact design and were specially designed for use with steam and hot condensate.

MAIN FEATURES

Low pressure drop.

Simple and compact design.

OPTIONS

Various soft sealing options: EPDM (E), NBR (N), FPM (V), PTFE (T).
Inconel springs.
Saturated steam, water and other gases compatible with the construction.
