TTV Valves

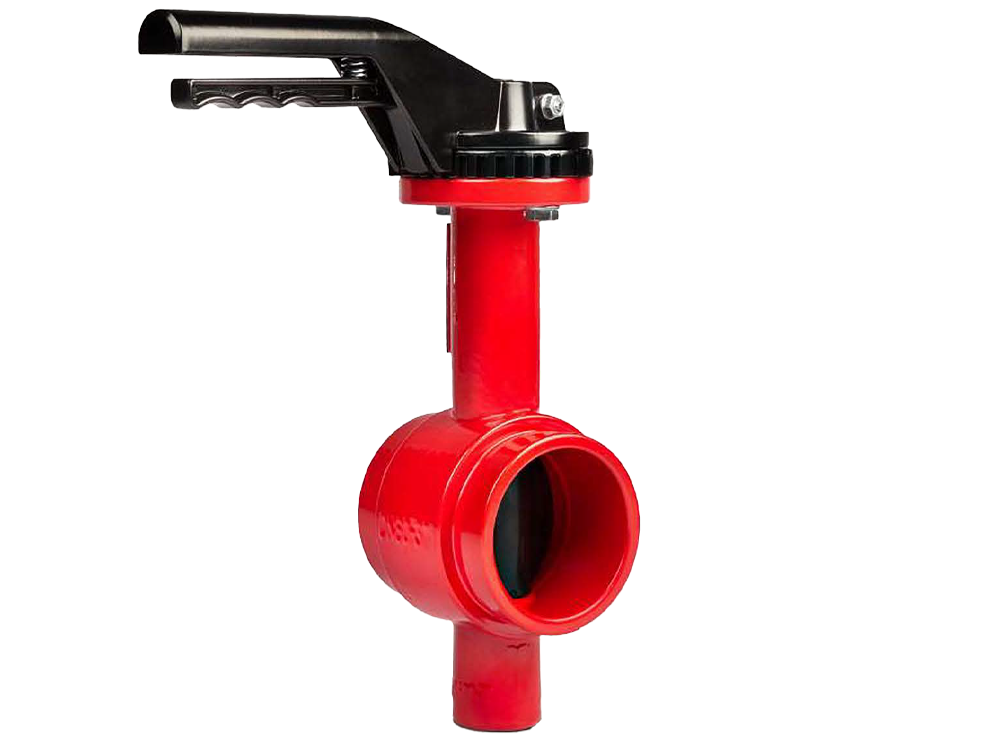

Product code: 20G9020E0
Grooved Butterfly Valve TTV 20G9020E0 PN16 Grooved type Ductile Iron body / Ductile Iron + EPDM disc / with locakble lever operated
-
Function
Valve indicated for water pipes, especially for fire protection.
-
Applications
Irrigation, Drinking water, Sea water, Water supply, Industrial water, Residual water, Fire protection systems, Cooling towers, Pumping stations.
-
Max. operating pressure
16 bar
-
Body Design
Grooved
-
Seat Design
Concentric
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Working temperature
-10°C up to 110°C
-
Valve Approvals & Features
FM approved / UL certified
-
Actuator Type
Lever Operated, Hand Wheel
-
Connections
Groove (*) to ISO6182 / AWWA C606,
* Grooved coupling that provides a safe, simple and fast connection.,
It does not require welding or coupling flanges.
Dimension:
DN50 – DN300Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

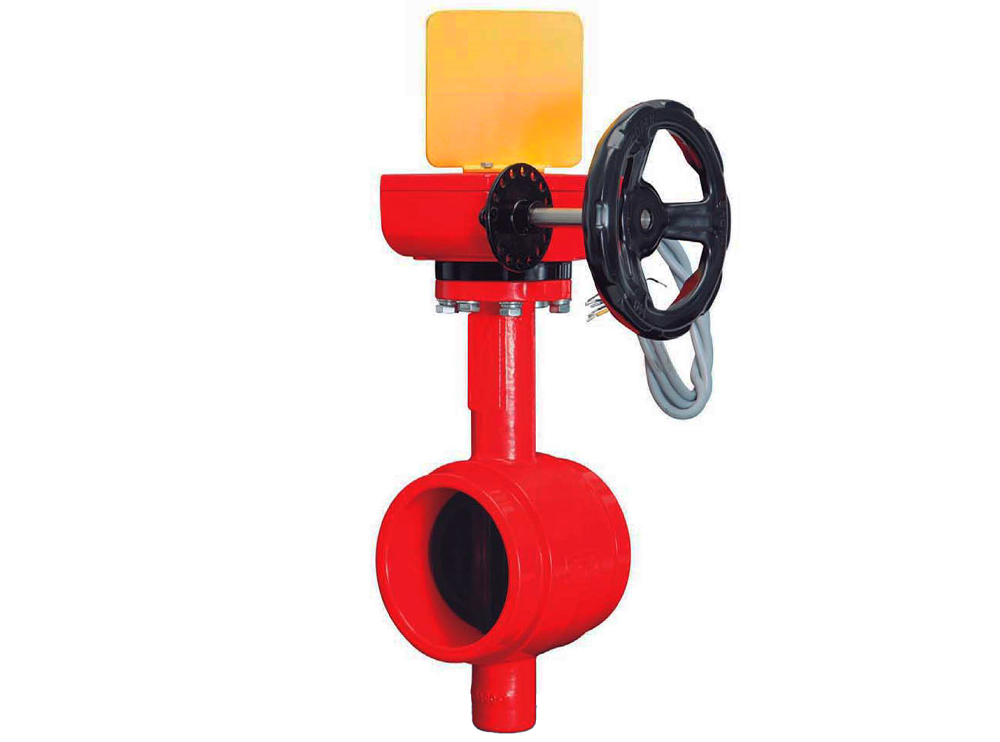

Product code: 20G9020E0RM
Grooved Butterfly Valve TTV 20G9020E0RM PN16 Grooved type Ductile Iron body / Ductile Iron + EPDM disc / with gear-box and limit switch
-
Function
Valve indicated for water pipes, especially for fire protection.
-
Applications
Irrigation, Drinking water, Sea water, Water supply, Industrial water, Residual water, Fire protection systems, Cooling towers, Pumping stations.
-
Max. operating pressure
16 bar
-
Body Design
Grooved
-
Seat Design
Concentric
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Working temperature
-10°C up to 110°C
-
Valve Approvals & Features
FM approved / UL certified
-
Actuator Type
Gear-box and limit switch
-
Built-in supervisory switches
One switch to guard the open valve position.,
Other switch to guard the closed valve position. -
Flying lead
1 meter
-
Connections
Groove (*) to ISO6182 / AWWA C606,
* Grooved coupling that provides a safe, simple and fast connection.,
It does not require welding or coupling flanges.
Dimension:
DN50 – DN300Price according to configurationAvailable on requestMore about the product -
-
TTV Valves

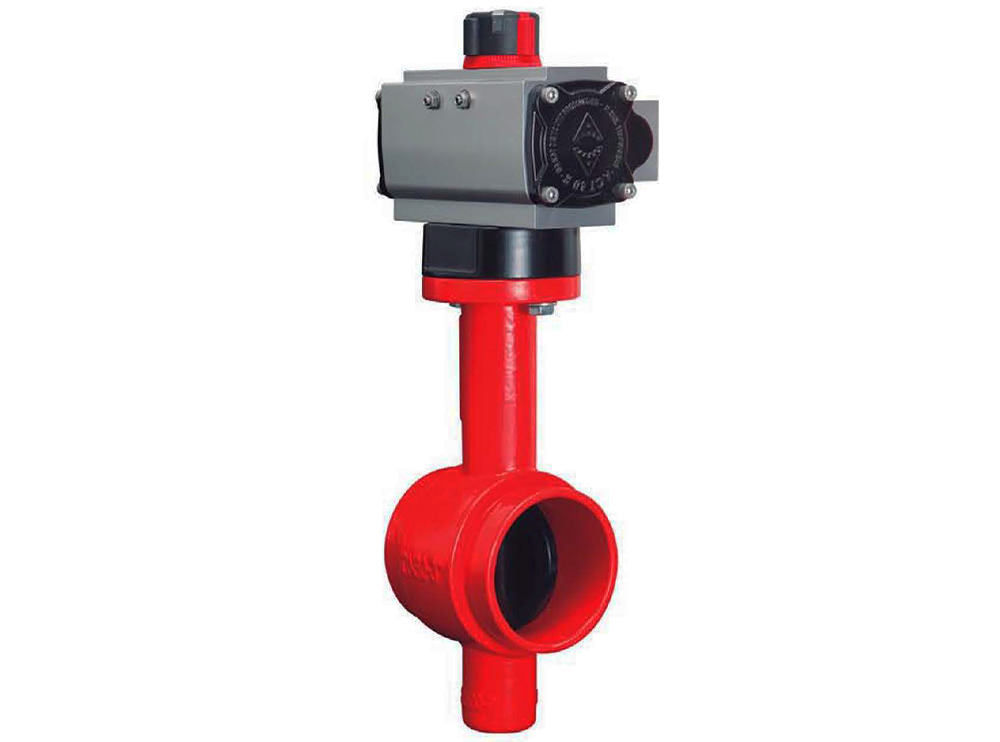

Product code: 20G9020E0AC
Actuated Grooved Butterfly Valve TTV 20G9020E0AC PN16 Grooved type Ductile Iron body / Ductile Iron + EPDM disc / with pneumatic actuator Actreg double acting
-
Function
Valve indicated for water pipes, especially for fire protection.
-
Applications
Irrigation, Drinking water, Sea water, Water supply, Industrial water, Residual water, Fire protection systems, Cooling towers, Pumping stations.
-
Max. operating pressure
16 bar
-
Body Design
Grooved
-
Seat Design
Concentric
-
Body material
Ductile Iron EN-GJS-500-7
-
Disc materials
Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan
-
Working temperature
Butterfly valve: -10°C up to 110°C,
Pneumatic actuator: - 30°C bis + 100°C -
Valve Approvals & Features
FM approved / UL certified
-
Actuation
Pneumatic actuator double acting
-
Actuator
Pneumatic actuator Actreg ADA with Position indicator, Control Pressure: 3-10 bar
-
Max. air supply pressure
Control Pressure: 6,0 bar (spring closes)
-
Connections
Groove (*) to ISO6182 / AWWA C606,
* Grooved coupling that provides a safe, simple and fast connection.,
It does not require welding or coupling flanges.
Dimension:
DN50 – DN300Price according to configurationAvailable on requestMore about the product -
