Specifications

• Function

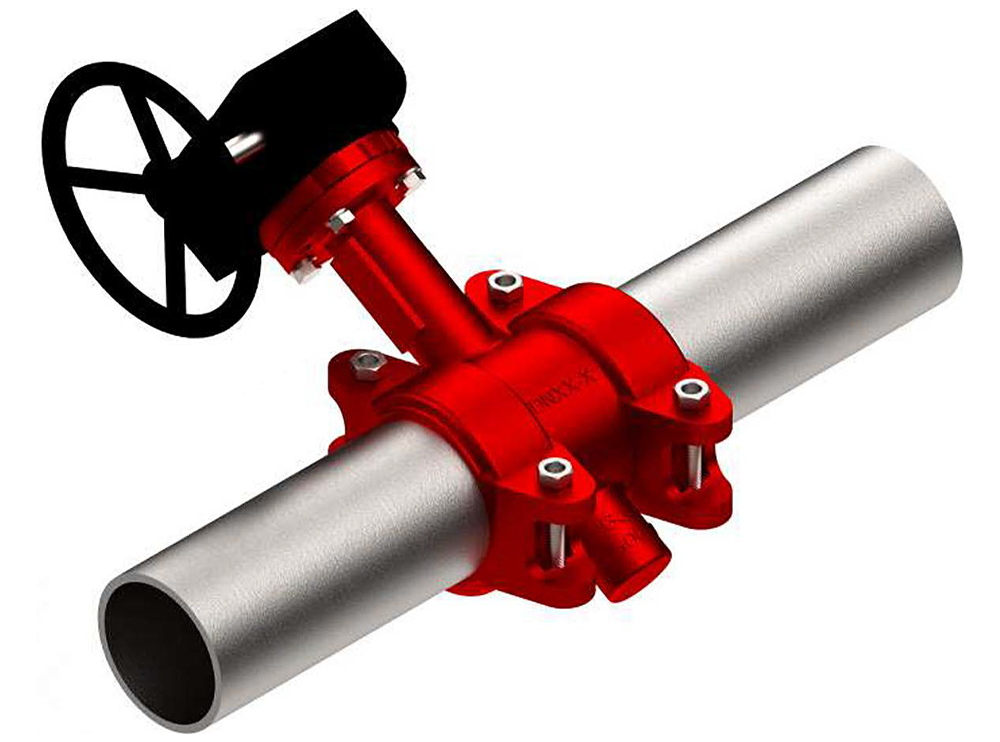

  Valve indicated for water pipes, especially for fire protection.

• Applications

  Irrigation, Drinking water, Sea water, Water supply, Industrial water, Residual water, Fire protection systems, Cooling towers, Pumping stations.

• Max. operating pressure

  16 bar

• Body Design

  Grooved

• Seat Design

  Concentric

• Body material

  Ductile Iron EN-GJS-500-7

• Disc materials

  Ductile Iron EN-GJS-500-7 coated with Epoxy or Rilsan

• Working temperature

  -10°C up to 110°C

• Valve Approvals & Features

  FM approved / UL certified

• Actuator Type

  Lever Operated, Hand Wheel

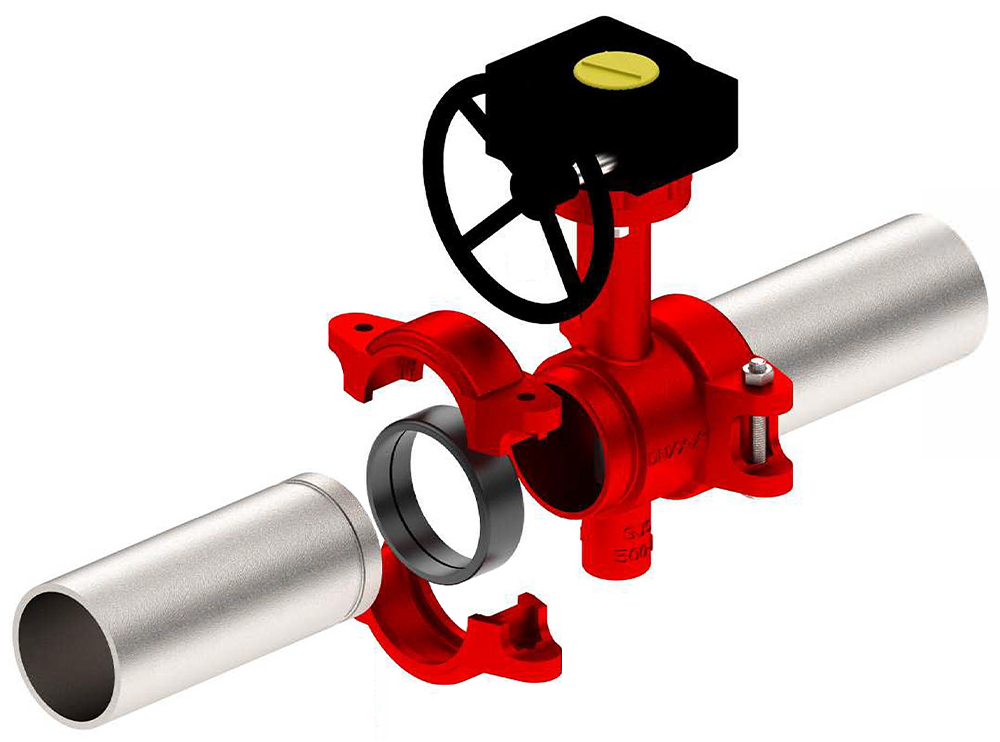

• Connections

  Groove (*) to ISO6182 / AWWA C606,
  * Grooved coupling that provides a safe, simple and fast connection.,
  It does not require welding or coupling flanges.
