Sanitary pressure gauges
Підбір по параметрах
- 10 продуктів на сторінку
- 25 продуктів на сторінку
- 50 продуктів на сторінку
- Актуальність
- Створений на
- Код товару
- Назва
- Доступний
-
Valsteam ADCA

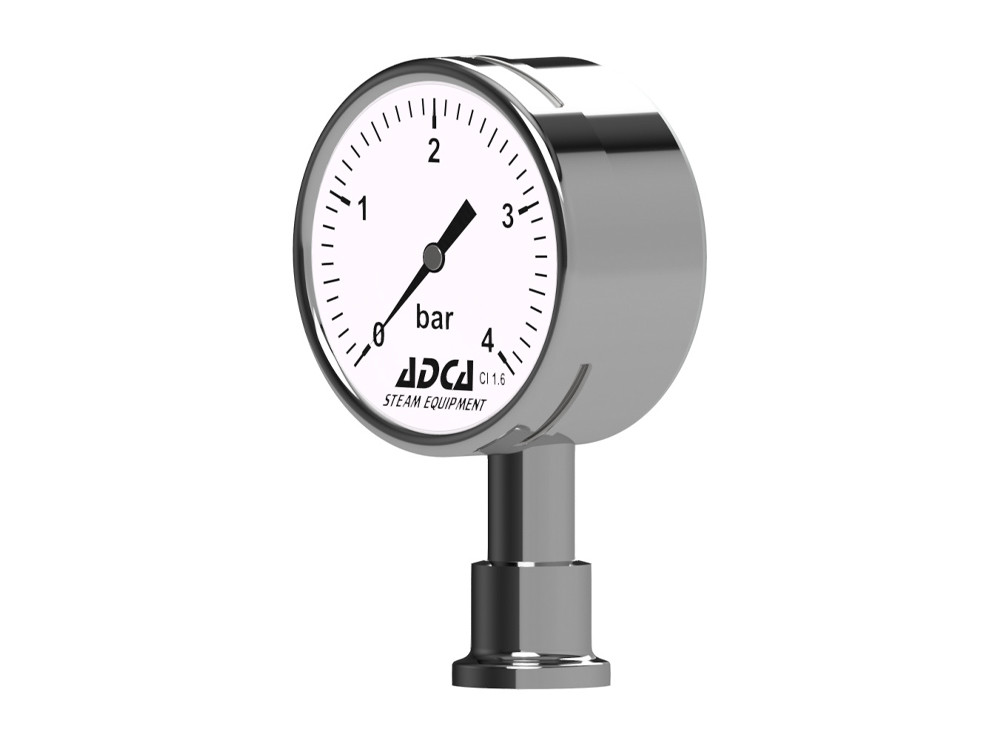

Product code: SM.063.R.X.V
ADCA® Sanitary Pressure Gauge ADCAPure SMAN-63R radial connection
-
Application
Gases and liquids
-
Design
Radial
-
Materials
Case and bezel: SS AISI 304,
Window: Laminated glass,
Wetted parts Stainless steel AISI 316L -
Max. allowable pressure
Full scale reading
-
Max. operating temperature
120 ºC *,
(*) 150 ºC for short term (cleaning) -
Min. operating temperature
-20 ºC
-
Ambient temperature
-10 to 60 ºC
-
Accuracy
±2,5% FS
-
Degree of protection
rating IP 65
-
Measuring ranges
from 0 to 2,5 /4 /6 /10 /16 /25 /40 bar,
Non-standard -1 to 1,5 bar (vacuum) -
Case size
Ø dial 63 mm
-
Sensitive element
AISI 316L diaphragm seal
-
Standard surface finish
Wetted parts: ≤ 0,76 µm Ra – SF3.
-
Connections
Clamp ferrules ASME BPE
-
-
Valsteam ADCA

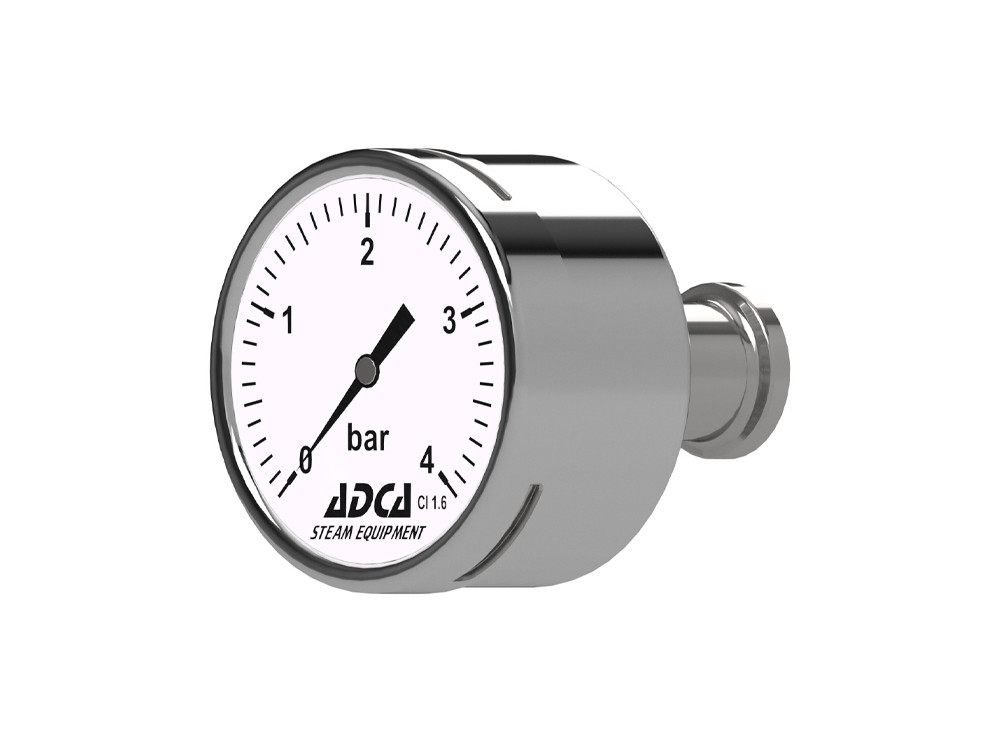

Product code: SM.063.A.X.V
ADCA® Sanitary Pressure Gauge ADCAPure SMAN-63A axial connection
-
Application
Gases and liquids
-
Design
Axial
-
Materials
Case and bezel: SS AISI 304,
Window: Laminated glass,
Wetted parts Stainless steel AISI 316L -
Max. allowable pressure
Full scale reading
-
Max. operating temperature
120 ºC *,
(*) 150 ºC for short term (cleaning) -
Min. operating temperature
-20 ºC
-
Ambient temperature
-10 to 60 ºC
-
Accuracy
±2,5% FS
-
Degree of protection
rating IP 65
-
Measuring ranges
from 0 to 2,5 /4 /6 /10 /16 /25 /40 bar,
Non-standard -1 to 1,5 bar (vacuum) -
Case size
Ø dial 63 mm
-
Sensitive element
AISI 316L diaphragm seal
-
Standard surface finish
Wetted parts: ≤ 0,76 µm Ra – SF3.
-
Connections
Clamp ferrules ASME BPE
-
