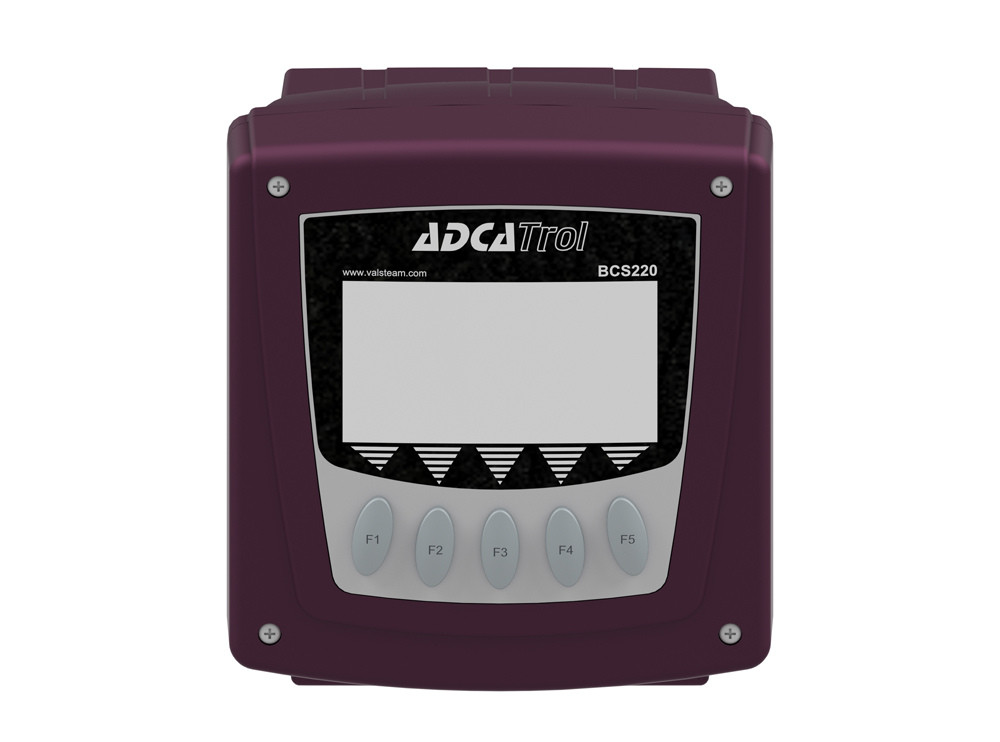

ADCATrol® Blowdown Controller ADCA BCS220 with steam boilers

Специфікація

Applications

TDS and intermittent blowdown control in one single unit.
Supply voltage

90 to 265 V AC, 10 W max. (BCS220 ),
12 to 30 V DC, 5 W max. (BCS220-LV)
IP rating

IP 66 NEMA 4X
Output

Analog 0(4) to 20 mA, 750 ohms max., fully isolated to 2 kV,
Relay 2 NO volt free contacts 5A @ 30 V DC / 5A @ 250 V AC
Input Signal

2-, 3-, or 4-wire input, temperature sensor; analog 0(4) to 20 mA; Digital*,
(*)Digital input suitable for connection to the boiler stand-by/burner contact, to reduce energy waste.
Range selection

Internal single or auto range
Measuring ranges*

0 to 99,99 μS/cm up to 0 to 999,9 mS/cm,
0 to 99,99 KΩ/cm up to 0 to 9,999 MΩ/cm,
0 to 99,99 ppm up to 0 to 99,99 ppt,
(*)See conductivity, TDS and resistivity range tables for further information.
Temperature measurement

Range: of +50 °C to +300 °C

ADCATrol® Blowdown Controller ADCA BCS220 with steam boilers

Код товару: VC.2510.220

Доступно для замовлення

Ціна відповідно до конфігурації

Виберіть свою конфігурацію

Переглянути всі конфігурації

Ref.#.

без ПДВ

(ОРІЄНТОВНА ЦІНА)

Кількість

-

+

Конфігурація товару відсутня

Вибрана конфігурація додана до кошика

Перейдіть до запиту на пропозицію

DESCRIPTION

The ADCATrol BCS220 is a blowdown controller specially designed for use with steam boilers. The device takes care of both TDS and intermittent blowdown controls.
TDS (Total Dissolved Solids) is controlled through measurement of the boiler water electrical conductivity and intermittent control is performed via a blowdown timer.
The device utilizes a clear multifunction LCD to display measured conductivity, temperature, operational alarm status and provide an intuitive user interface. The device is IP 66 rated NEMA 4X and can be panel, surface/wall and pipe mounted.

MAIN FEATURES

TDS and intermittent blowdown control in one single device.
Displays conductivity, resistivity, PPM and temperature units.
Programmable cell constant.
Versatile IP 66 NEMA 4X (144 x 144 mm) enclosure design.
Large informative 3,75’’ LCD backlit display.
Simple intuitive menu structure with soft tactile function buttons.
Software upgradable via SD card slot – Future proof.
Volt-free outputs with multiple alarm function options.
0(4) to 20 mA analog output for remote monitoring purposes with features including adjustable scaling, selectable on-error states and loop fault detection.
Digital input suitable for connection to the boiler stand-by/burner contact, to reduce energy waste.

OPTIONS AND ACCESSORIES

Panel mounting kit.

Pipe mounting kit (50 to 100 mm pipe OD).

AVAILABLE MODELS

BCS220 – 90 to 265 V AC power supply.

BCS220-LV – 12 to 30 V DC power supply.
