ADCATrol® Resistance Temperature probes PT-100 ADCA TRPT1

Специфікація

Applications

Temperature measurement in pipelines and vessels.
Max. operating conditions

36,5 bar @ +400 ºC
Temperature range

-10 ºC to +300 ºC (Class A), others on request*
Ambient temperature

-20 ºC to 80 ºC
Sensing element

RTD three wire device according to EN 60751 Class A
Enclosure/head

KNE
IP rating

IP 66
Output

3 wire Pt100 to EN 60751 – Class A
Approvals

ATEX approved version on request
Sizes and connections

Male thread ISO 228 G – 1/2''

ADCATrol® Resistance Temperature probes PT-100 ADCA TRPT1

Код товару: VC.4050.100

Доступно під запит

Ціна відповідно до конфігурації

Виберіть свою конфігурацію

Переглянути всі конфігурації

Ref.#.

без ПДВ

(ОРІЄНТОВНА ЦІНА)

Кількість

Конфігурація товару відсутня

Вибрана конфігурація додана до кошика

Перейдіть до запиту на пропозицію

DESCRIPTION

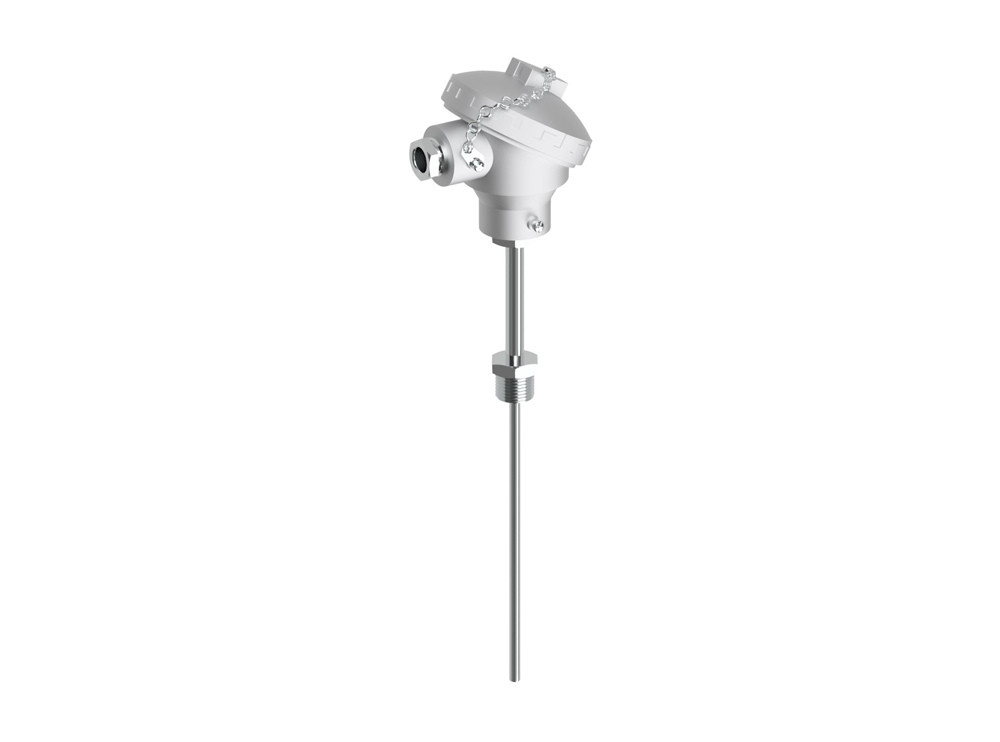

The ADCATrol TRPT1 is a series of Pt100 resistance temperature sensors specially designed for general industrial use. The sensing element is an RTD three wire device according to EN 60751 Class A. The sensor consists of a probe, a connection head and a measurement insert. The probe is made of austenitic stainless steel and the connection head is made of aluminium. The supply lines to the measurement insert are insulated from each other and from the probe tube with a ceramic insulator.
The sensor can be connected directly to a temperature indicator or controller that has a three wire Pt100 input.

MAIN FEATURES

Head type B-KNE.
Three wire sensing element.
Fast response time.
Easy to install.

OPTIONS

Transmitter assembly with 4 to 20 mA output.
Sanitary version with clamped connection.
Design for air temperature measurements.
Special insertion lengths.
ATEX approved version.
Higher operating limits.
