Valsteam ADCA
Product code: SC32PX

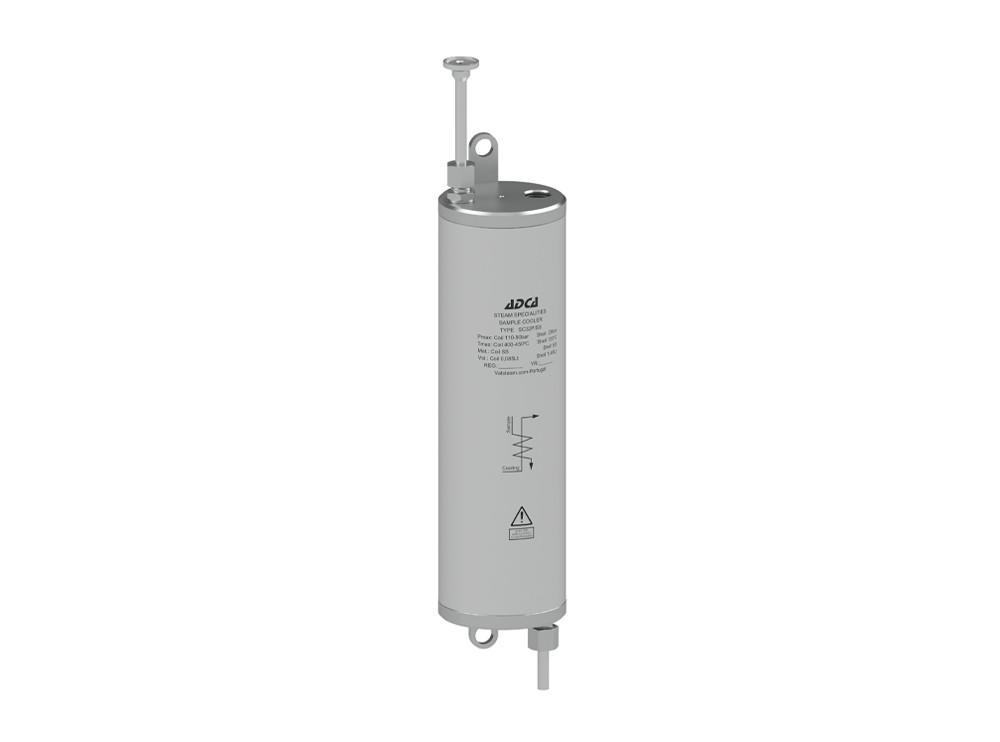

ADCA® Sanitary Sample Cooler ADCAPure SC32P fixed installation version
-
Application
Clean steam, hot condensate, water,
WFI and other liquids and gases -
Materials
Body and coil in stainless steel AlSl 316L / 1.4404,
Coil in AISI 316L / 1.4435 on request -
Max. allowable pressure
Body: 20 bar,
Coil: 110 bar @ 400 ºC -
Max. allowable temperature
Body: 120 ºC,
Coil: 450 ºC @ 90 bar -
Min. operating temperature
-10 ºC
-
Flowrate
30 to 60 kg/h of sample water at ≈ 30 ºC,
with 1 m³/h – 15 ºC inlet cooling water -
Standard surface finish
External: ≤ 0,76 µm Ra – SF3,
Internal wetted parts: ≤ 0,51 µm Ra – SF1. -
Sample side pipe connection
8 mm O/D inlet and outlet,
clamp ferrule ASME BPE,
clamp ferrule ASME BPE inlet and 8 mm O/D outlet -
Cooling water side pipe connection
female threaded ISO 228,
female threaded NPT ASME B1.20.1,
clamp ferrule ASME BPE -
Installation
Fixed installation.
-
-
Valsteam ADCA
Product code: SC32PP

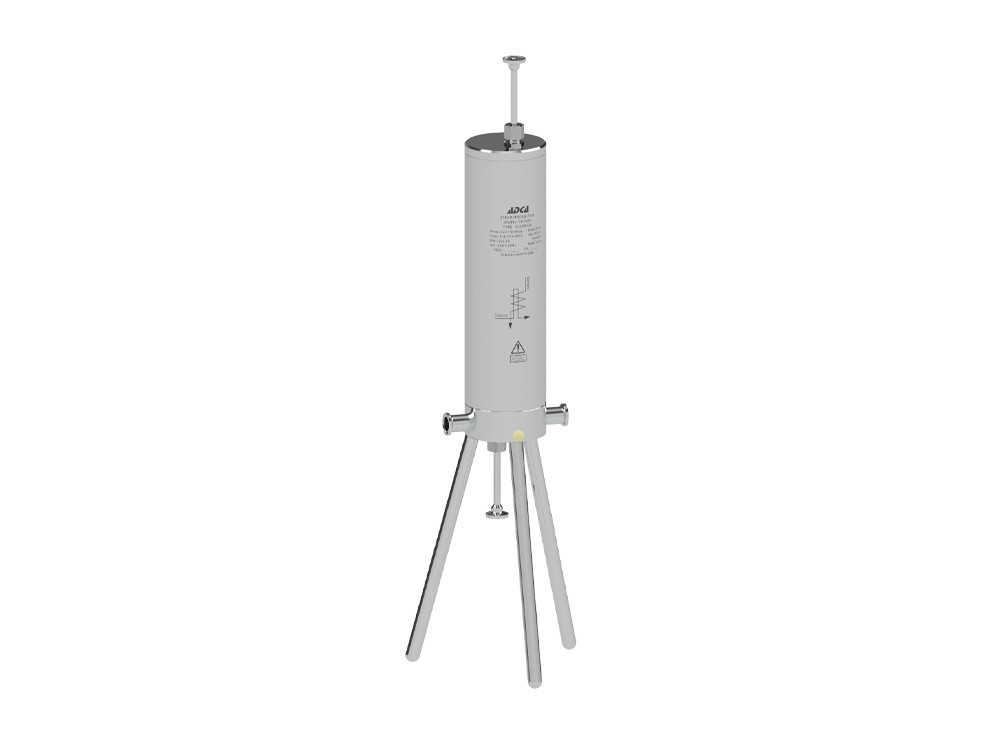

ADCA® Sanitary Sample Cooler ADCAPure SC32PP portable version
-
Application
Clean steam, hot condensate, water,
WFI and other liquids and gases -
Materials
Body and coil in stainless steel AlSl 316L / 1.4404,
Coil in AISI 316L / 1.4435 on request -
Max. allowable pressure
Body: 20 bar,
Coil: 110 bar @ 400 ºC -
Max. allowable temperature
Body: 120 ºC,
Coil: 450 ºC @ 90 bar -
Min. operating temperature
-10 ºC
-
Flowrate
30 to 60 kg/h of sample water at ≈ 30 ºC,
with 1 m³/h – 15 ºC inlet cooling water -
Standard surface finish
External: ≤ 0,76 µm Ra – SF3,
Internal wetted parts: ≤ 0,51 µm Ra – SF1. -
Sample side pipe connection
8 mm O/D inlet and outlet,
clamp ferrule ASME BPE,
clamp ferrule ASME BPE inlet and 8 mm O/D outlet -
Cooling water side pipe connection
female threaded ISO 228,
female threaded NPT ASME B1.20.1,
clamp ferrule ASME BPE -
Installation
Portable version,
to carry along to any sampling point within the system.
-
