Valsteam ADCA

Product code: ADCAPure.TSS7

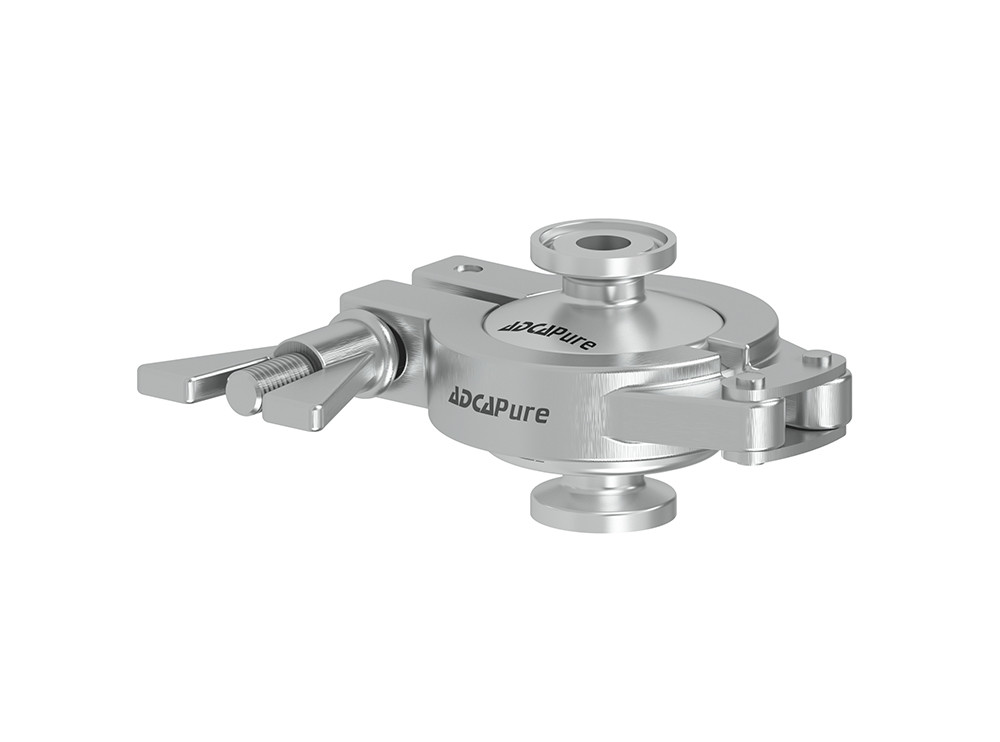

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS7 for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 1436 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
View Product
Valsteam ADCA

Product code: ADCAPure.TSS6

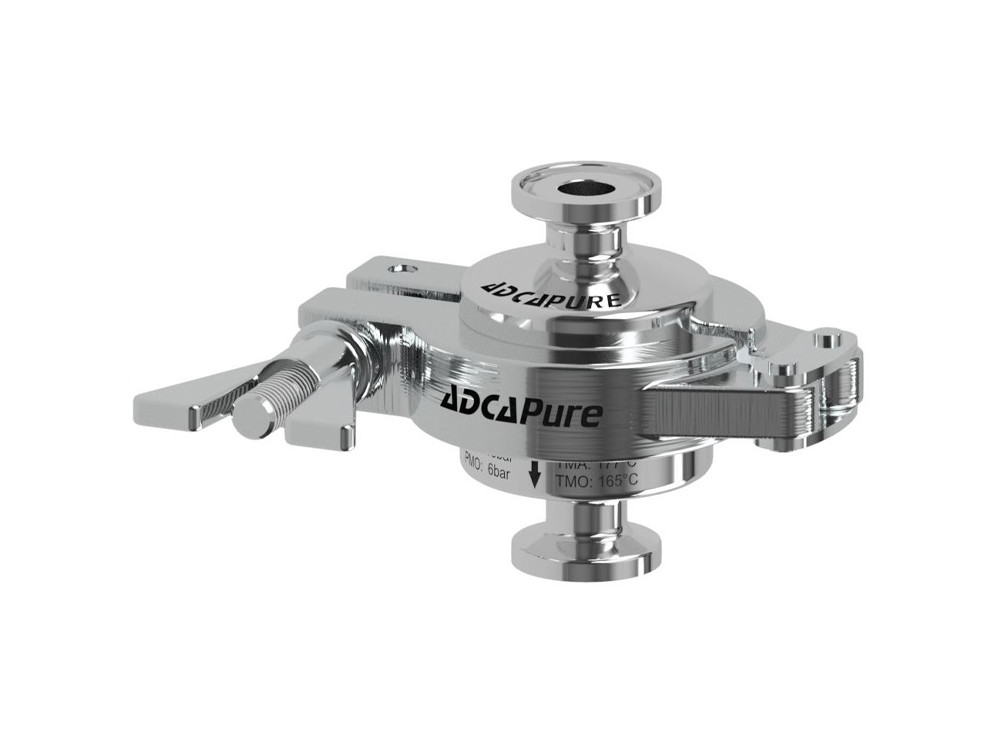

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS6 for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 1682 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Connections

  Clamp ferrules ASME BPE,
  Clamp ferrule DIN (DIN 32676-A),
  Clamp ferrule ISO (DIN 32676-B),
  Tube weld (ETO) according to ASME BPE,
  Tube weld (ETO) according to DIN 11866-A (DIN 11850-2),
  Tube weld (ETO) according to DIN 11866-B (ISO 1127).
Dimension:
1/2" – 1.1/2"; DN08 – DN25

Price according to configuration

Available on request
View Product
Valsteam ADCA

Product code: ADCAPure.TSS6H

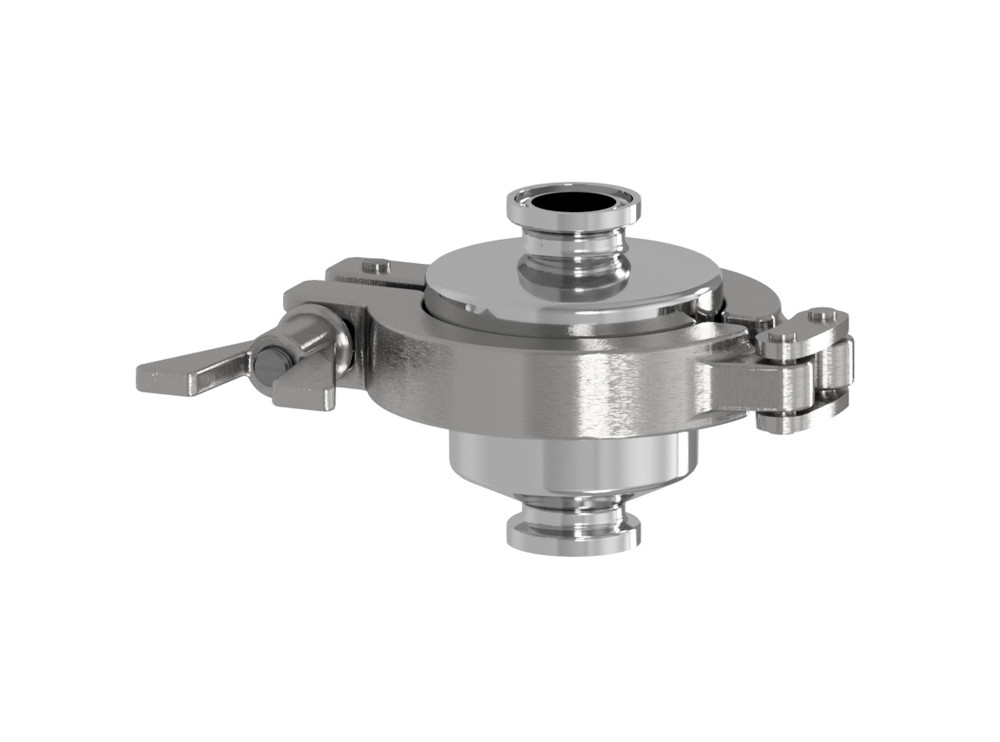

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS6H for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 4966 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2" – 1.1/2"; DN 15 – DN 40

Price according to configuration

Available to Order
View Product
Valsteam ADCA

Product code: ADCAPure.TSS6.A

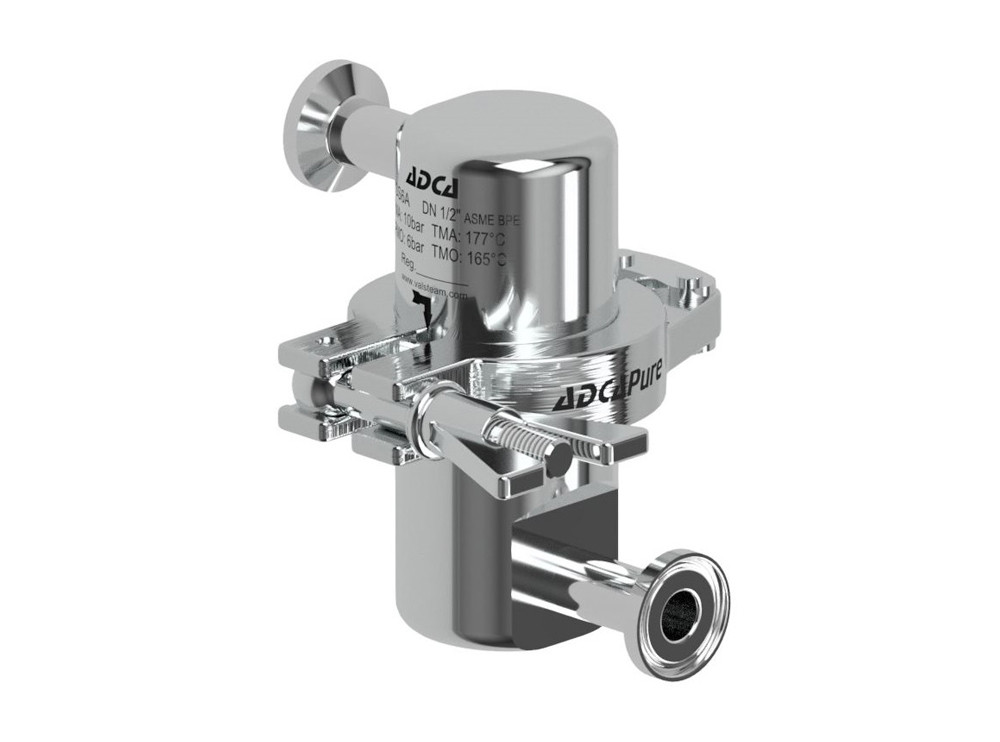

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS6A for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 1682 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Installation

  Horizontal inlet and outlet.
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2” – 3/4”

Price according to configuration

Available on request
View Product
Valsteam ADCA

Product code: ADCAPure.TSS6.AI

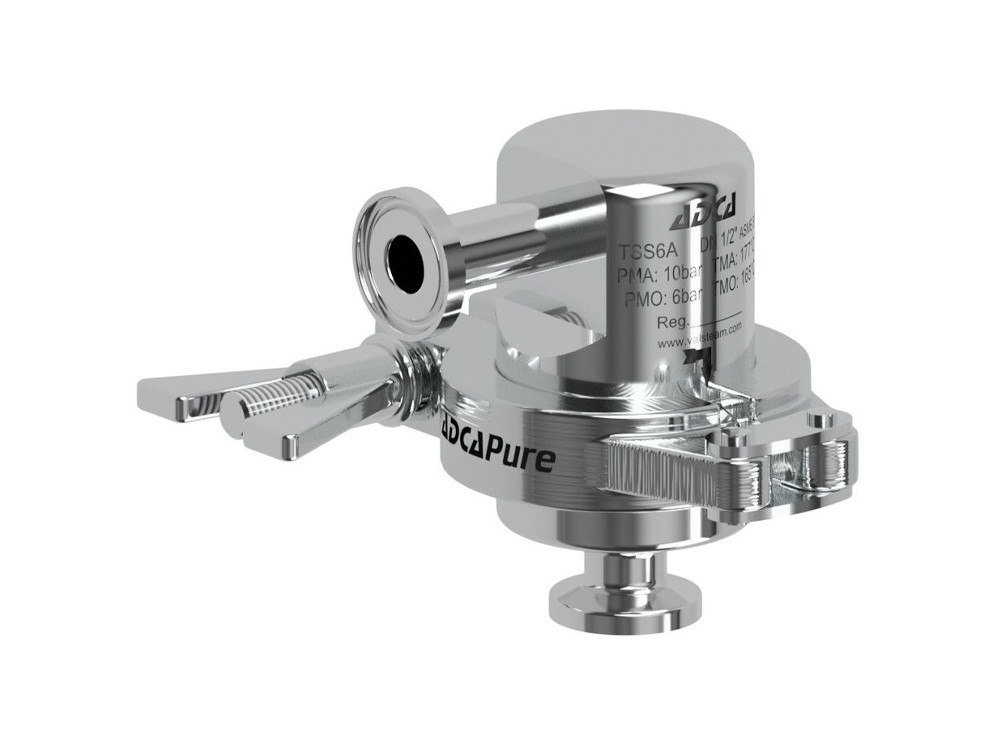

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS6AI for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 1682 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Installation

  Horizontal inlet and vertical outlet
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2” – 3/4”

Price according to configuration

Available on request
View Product
Valsteam ADCA

Product code: ADCAPure.TSS6.AO

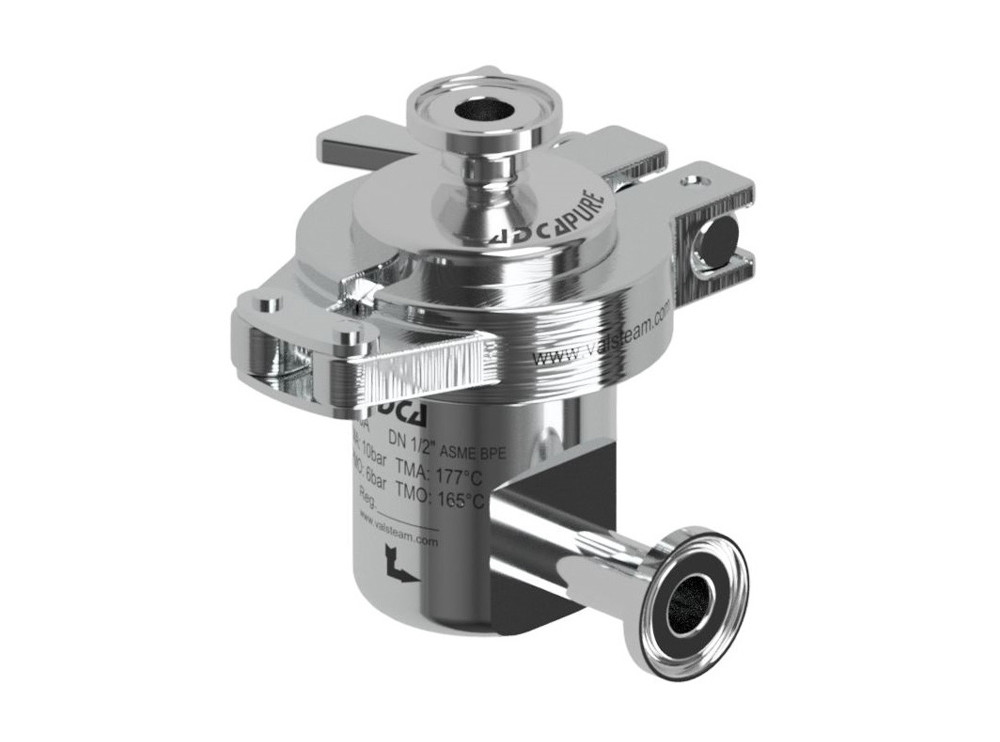

ADCA® Thermostatic Sanitary Steam Trap ADCAPure TSS6AO for Clean Steam
- Application

  Saturated clean steam.
- Body material

  Stainless steel AISI 316L
- Max. allowable pressure

  10 bar
- Max. allowable temperature

  177 ºC
- Max. operating pressure

  6 bar
- Max. operating temperature

  165 ºC
- Body sealing

  Glass microsphere filled PTFE
- Flow rate capacity

  Up to 1682 kg/h
- Differential pressure

  Delta P: 6 bar
- Type thermostat

  Thermostat for sub coolings 5 ºC
- Standard surface finish

  Internal wetted parts: ≤ 0,51 µm Ra – SF1,
  External: ≤ 0,76 µm Ra – SF3
- Installation

  Vertical inlet and horizontal outlet
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2” – 3/4”

Price according to configuration

Available on request
View Product
