Sanitary Sight Glass Flow Indicator

Selection by parameters

Show:

10 per page

10 products per page
25 products per page
50 products per page

Sort:

Relevance

Relevance
Created at
Product code
Name
Available

Valsteam ADCA

Product code: SWS.X.T.X.X.DX

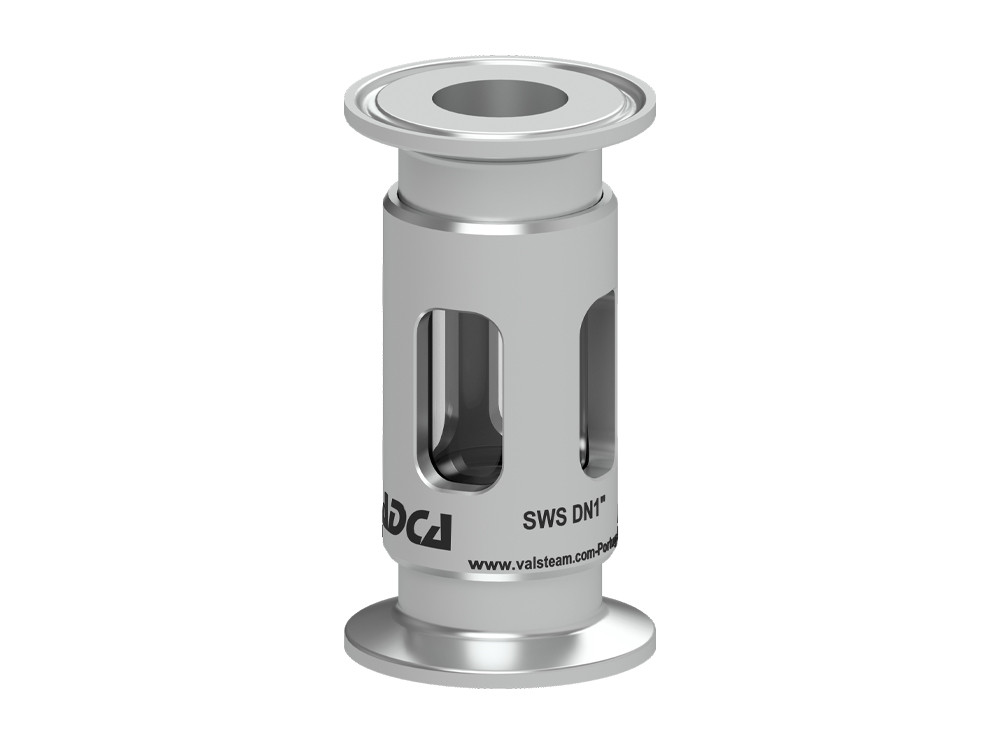

ADCA® Sanitary Sight Glass Flow Indicator ADCAPure SWS
- Application

  Clean steam, hot condensate, water,
  WFI and other liquids and gases
- Materials

  Body: stainless steel AlSl 316L,
  Glass: Borosilicate
- Max. operating pressure

  Up to 20 bar
- Max. operating temperature

  200 ºC
- Min. operating temperature

  -10 ºC
- Body sealing

  PTFE – Tmax 200 ºC,
  EPDM* HP – Tmax 150 ºC,
  (*) Tmax 180 ºC with steam and hot water
- Standard surface finish

  External: ≤ 0,76 µm Ra – SF3,
  Internal wetted parts: ≤ 0,51 µm Ra – SF1.
- Connections

  Clamp ferrules ASME BPE
Dimension:
1/2" – 4"

Price according to configuration

Available on request
