Valsteam ADCA
Product code: SAV.XX.XXT
ADCA® Sanitary air vent valve ADCAPure SAV10 – soft upper seat, metal lower seat
-
Application
Water and other liquids
-
Materials
Body: SS AISI 316L,
Ball*: Stainless steel AISI 316L,
(*) Polypropylene ball on request -
Max. allowable pressure
10 bar
-
Min. liquid specific weight
0,75 kg/dm³,
Polypropylene ball - density of 0,906 kg/dm³ -
Min. closing pressure
silicone seals: 0,7 bar,
EPDM, FPM or FFKM seals: 1,5 bar -
Max. operating temperature
See seals: 150 ºC,
olypropylene ball - Tmax 90 ºC -
Min. operating temperature
-10 ºC
-
Flow rate capacity
Up to 3982 NL/min
-
Body sealing
Glass microsphere filled PTFE
-
Valve sealing
Metal to metal,
soft: Silicone; EPDM; FPM; FFKM -
Standard surface finish
Internal wetted parts: ≤ 0,51 µm Ra – SF1,
External: ≤ 0,76 µm Ra – SF3 -
Connections
Clamp ferrules ASME BPE
-
-
Valsteam ADCA
Product code: SAV.DX.XXT
ADCA® Sanitary air vent valve ADCAPure SAV10D – soft upper and lower seats
-
Application
Water and other liquids
-
Materials
Body: SS AISI 316L,
Ball*: Stainless steel AISI 316L,
(*) Polypropylene ball on request -
Max. allowable pressure
10 bar
-
Min. liquid specific weight
0,75 kg/dm³,
Polypropylene ball - density of 0,906 kg/dm³ -
Min. closing pressure
silicone seals: 0,7 bar,
EPDM, FPM or FFKM seals: 1,5 bar -
Max. operating temperature
See seals: 150 ºC,
olypropylene ball - Tmax 90 ºC -
Min. operating temperature
-10 ºC
-
Flow rate capacity
Up to 3982 NL/min
-
Body sealing
Glass microsphere filled PTFE
-
Valve sealing
soft: Silicone; EPDM; FPM; FFKM
-
Standard surface finish
Internal wetted parts: ≤ 0,51 µm Ra – SF1,
External: ≤ 0,76 µm Ra – SF3 -
Connections
Clamp ferrules ASME BPE
-
-
Valsteam ADCA

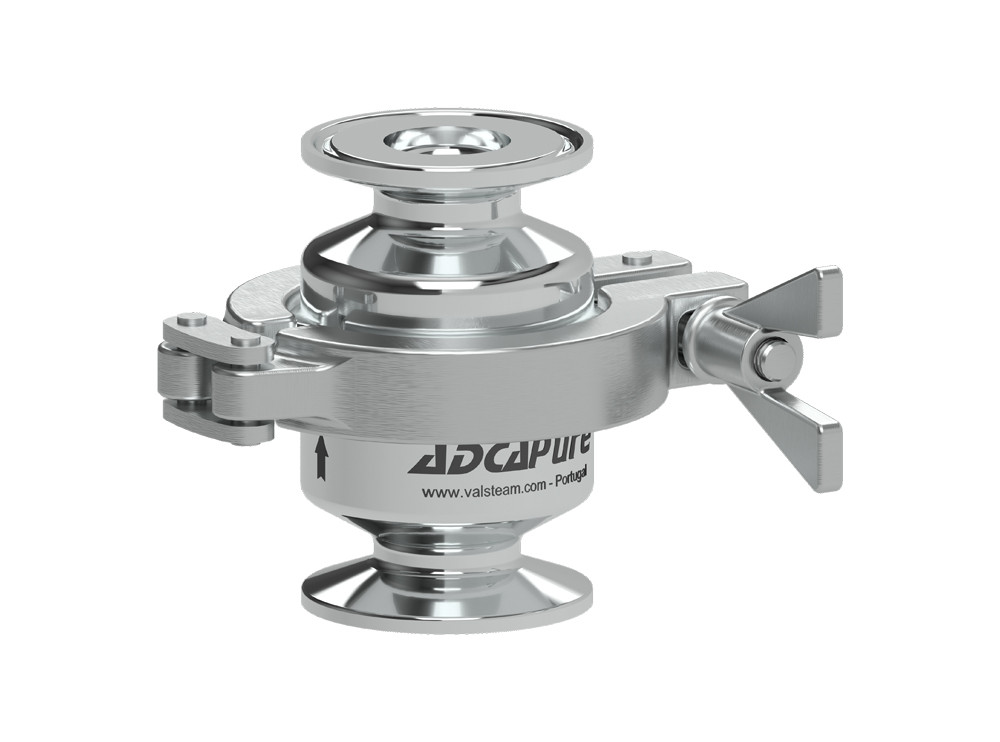

Product code: SAV.CK.XXT
ADCA® Sanitary air vent valve ADCAPure SAV10CK – soft upper seat, grooved lower seat
-
Application
Water and other liquids
-
Materials
Body: SS AISI 316L,
Ball*: Stainless steel AISI 316L,
(*) Polypropylene ball on request -
Max. allowable pressure
10 bar
-
Min. liquid specific weight
0,75 kg/dm³,
Polypropylene ball - density of 0,906 kg/dm³ -
Min. closing pressure
silicone seals: 0,7 bar,
EPDM, FPM or FFKM seals: 1,5 bar -
Max. operating temperature
See seals: 150 ºC,
olypropylene ball - Tmax 90 ºC -
Min. operating temperature
-10 ºC
-
Flow rate capacity
Up to 3982 NL/min
-
Body sealing
Glass microsphere filled PTFE
-
Valve sealing
Metal to metal,
soft: Silicone; EPDM; FPM; FFKM -
Standard surface finish
Internal wetted parts: ≤ 0,51 µm Ra – SF1,
External: ≤ 0,76 µm Ra – SF3 -
Connections
Clamp ferrules ASME BPE
-
