ADCA® Sanitary air vent valve ADCAPure SAV10CK – soft upper seat, grooved lower seat

Specifications

  • Application

    Water and other liquids

  • Materials

    Body: SS AISI 316L,
    Ball*: Stainless steel AISI 316L,
    (*) Polypropylene ball on request

  • Max. allowable pressure

    10 bar

  • Min. liquid specific weight

    0,75 kg/dm³,
    Polypropylene ball - density of 0,906 kg/dm³

  • Min. closing pressure

    silicone seals: 0,7 bar,
    EPDM, FPM or FFKM seals: 1,5 bar

  • Max. operating temperature

    See seals: 150 ºC,
    olypropylene ball - Tmax 90 ºC

  • Min. operating temperature

    -10 ºC

  • Flow rate capacity

    Up to 3982 NL/min

  • Body sealing

    Glass microsphere filled PTFE

  • Valve sealing

    Metal to metal,
    soft: Silicone; EPDM; FPM; FFKM

  • Standard surface finish

    Internal wetted parts: ≤ 0,51 µm Ra – SF1,
    External: ≤ 0,76 µm Ra – SF3

  • Connections

    Clamp ferrules ASME BPE

ADCA® Sanitary air vent valve ADCAPure SAV10CK – soft upper seat, grooved lower seat

Product code: SAV.CK.XXT

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No product configuration

The selected configuration has been added to the cart

Go to quotation request
DESCRIPTION

The ADCAPure SAV10 sanitary air vent is a self-acting valve designed for air venting applications with liquids.
The valve closes when filled with liquid product. As the level falls, the valve opens if pressure is also relieved. The valve does not open under operating pressure, thus being mostly used as a start-up bleeding valve. Typical applications include air venting in CIP lines (e.g. installed at suction of SIP return pump to prevent air lock), tanks, high points in pipelines, amongst others.
Specifically designed for hygienic systems found in the pharmaceutical, cosmetic, fine chemical and food & beverage processes

MAIN FEATURES

Compact and easy to install.
Springless design.
Complete 316L stainless steel construction, including float.
Different models available depending on the intended application.

STANDARD SURFACE FINISH

Internal wetted parts: ≤ 0,51 µm Ra – SF1.
External: ≤ 0,76 µm Ra – SF3.
Other surface conditions see on request.
Ultrasonic cleaning.

AVAILABLE MODEL

SAV10CK – soft upper seat; grooved lower seat.

OPERATION

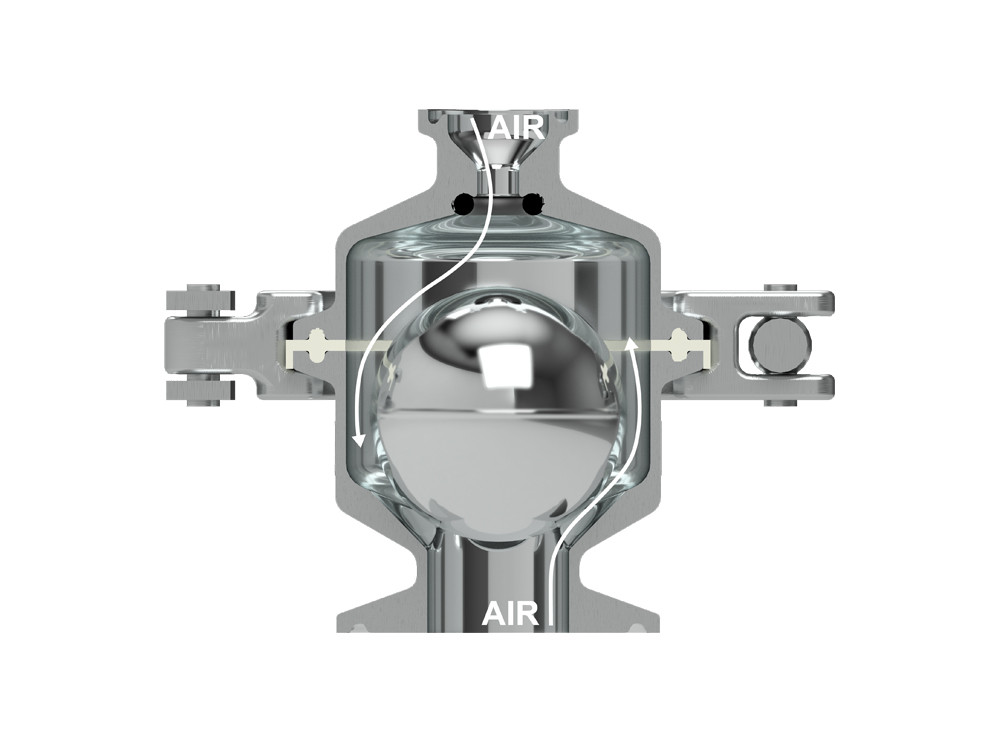

The SAV10CK features a grooved body. As such, when the float rests on the lower seat, air is permitted to flow, in either direction, through the grooves. It was designed for applications where air should be allowed to flow freely in and out of the system, while the product must be kept inside.
