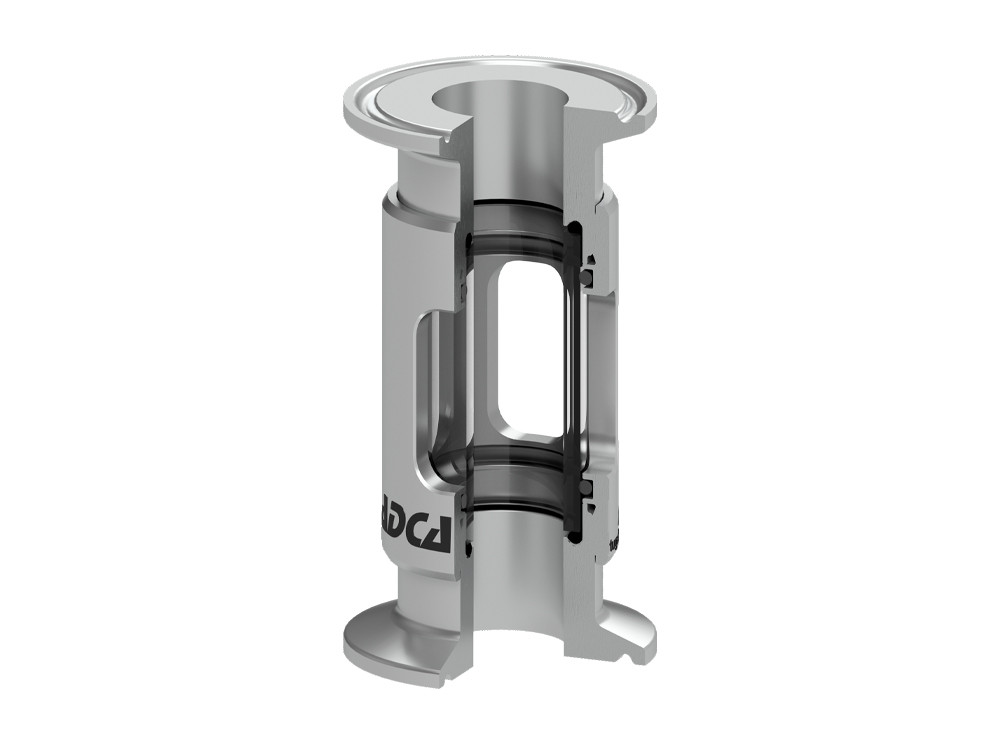

ADCA® Sanitary Sight Glass Flow Indicator ADCAPure SWS

Specifications

Application

Clean steam, hot condensate, water,
WFI and other liquids and gases
Materials

Body: stainless steel AlSl 316L,
Glass: Borosilicate
Max. operating pressure

Up to 20 bar
Max. operating temperature

200 ºC
Min. operating temperature

-10 ºC
Body sealing

PTFE – Tmax 200 ºC,
EPDM* HP – Tmax 150 ºC,
(*) Tmax 180 ºC with steam and hot water
Standard surface finish

External: ≤ 0,76 µm Ra – SF3,
Internal wetted parts: ≤ 0,51 µm Ra – SF1.
Connections

Clamp ferrules ASME BPE

ADCA® Sanitary Sight Glass Flow Indicator ADCAPure SWS

Product code: SWS.X.T.X.X.DX

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No product configuration

The selected configuration has been added to the cart

Go to quotation request

DESCRIPTION

The ADCAPure SWS sanitary sight glasses are designed to monitor liquid flow in any direction.
Sight glasses, also called flow indicators, are usually employed to detect either the presence or absence of fluid flow, turbulence, colour, etc. They are specially recommended for high purity applications.

MAIN FEATURES

Compact design.
Completely machined from bar stock materials, no castings or forgings are used on the standard version.
Precision borosilicate glass mounted without stress.
Excellent visualization.
