Specifications

• Application

  Cold, hot and superheated water,
  Oil,
  non-toxic fluid with a min. specific gravity of 0,75 kg/dm³

• Body material

  Carbon steel

• Max. operating pressure

  32 bar

• Max. operating temperature

  EPDM valve sealing: 130ºC,
  FPM / Viton valve sealing: 200 ºC

• Flow rate capacity

  Up to 5277 NL/min,
  Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar)

• Differential pressure

  Delta P max.: 5, 10, 20, 28 and 32 bar,
  Delta P min.: 0,1 bar

• Valve sealing

  EPDM; FPM / Viton

• Outlet pipe connection

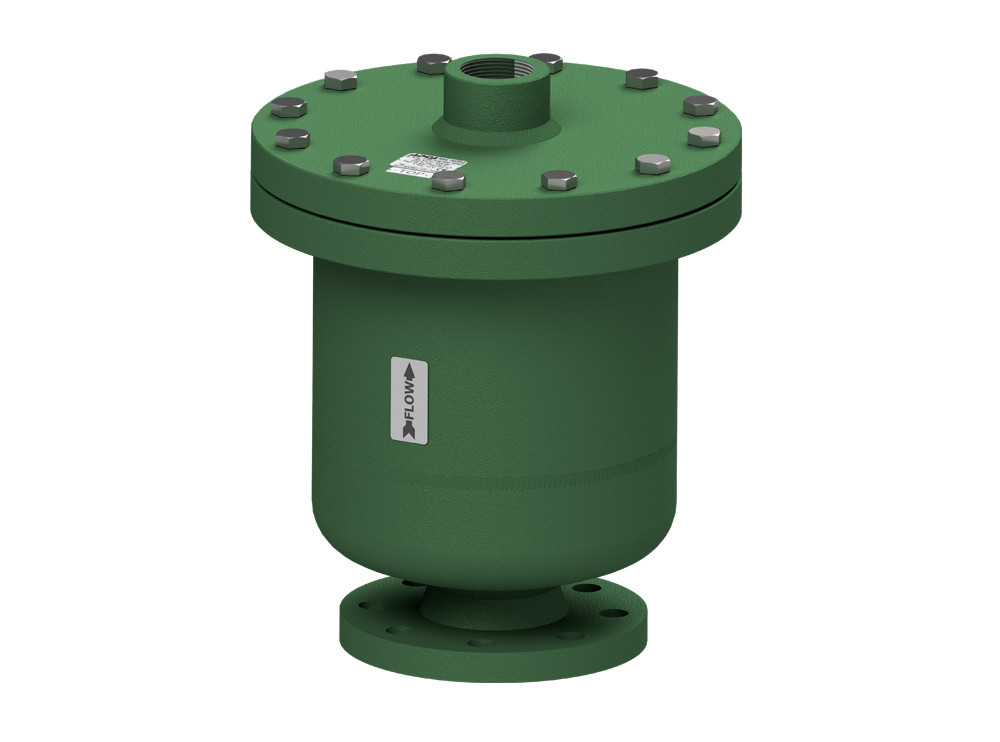

  Female threaded ISO 7 Rp A,
  Female threaded NPT, on request,

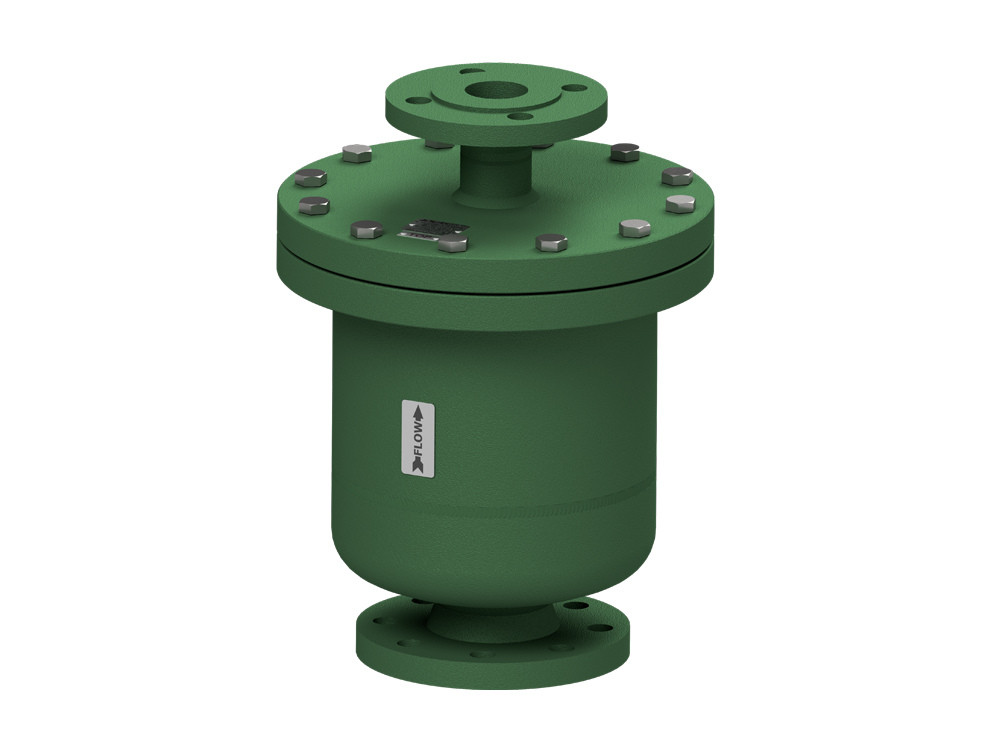

  Flanged EN 1092-1 PN 16 or PN 40,
  Flanged ASME B16.5 Class 150 or 300, on request,
  Socket weld (SW) ASME 16.11, on request

• Inlet pipe connection

  Flanged EN 1092-1 PN 16 or PN 40,
  Flanged ASME B16.5 Class 150 or 300, on request
