ADCA Pressure Gauge with U Syphon and Gauge Cock for Steam

Specifications

Application

Steam
Materials

Stainless steel pressure gauge,
Stainless steel gauge siphons,
Carbon steel gauge cock.
Max. operating pressure

40 bar
Max. operating temperature

300 ºC
Syphon

'U' Type
Dial diameter gauge

Ø100 mm
Accuracy

±1% FS
Installation

Horizontal connection
Connections

Male threaded ISO 228 G

ADCA Pressure Gauge with U Syphon and Gauge Cock for Steam

Product code: ASSY.GSU.01

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

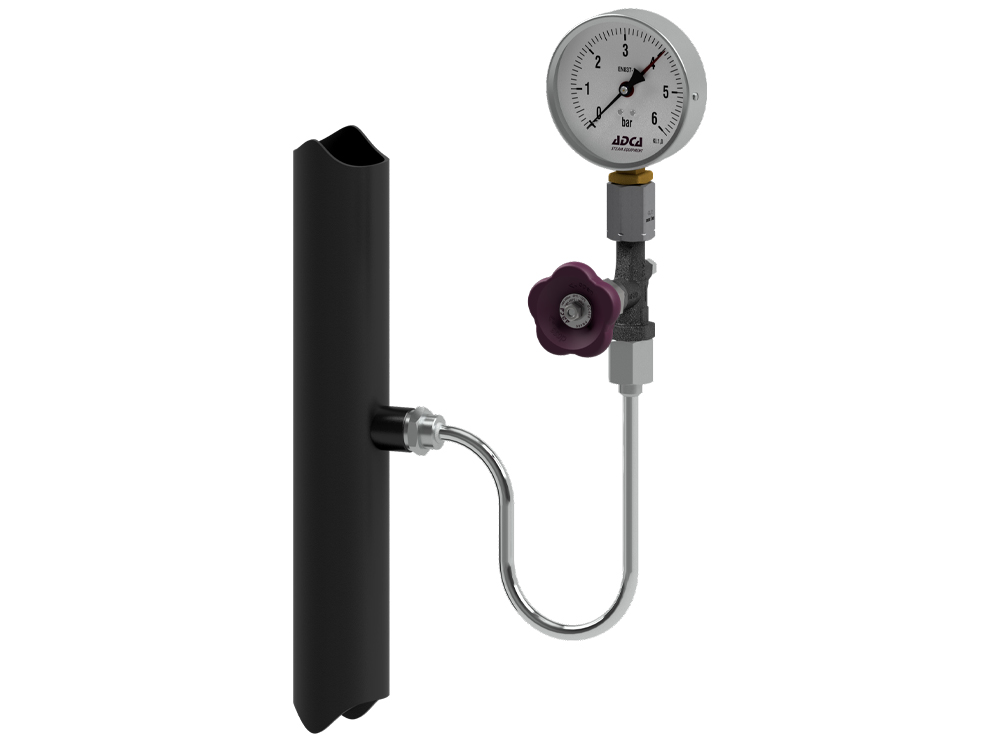

ADCA Pressure Gauge with U Syphon Horizontal pipe and Gauge Cock for Steam

We have compiled an easy to install, Bourdon tube pressure gauge set, manufactured to DIN design, comprising of a heavy duty stainless steel cased pressure gauge size Ø100 mm face.

The gauge is scale in both Bar, it has fitted an industrial isolating valve onto of U type syphon horizontal pipe.

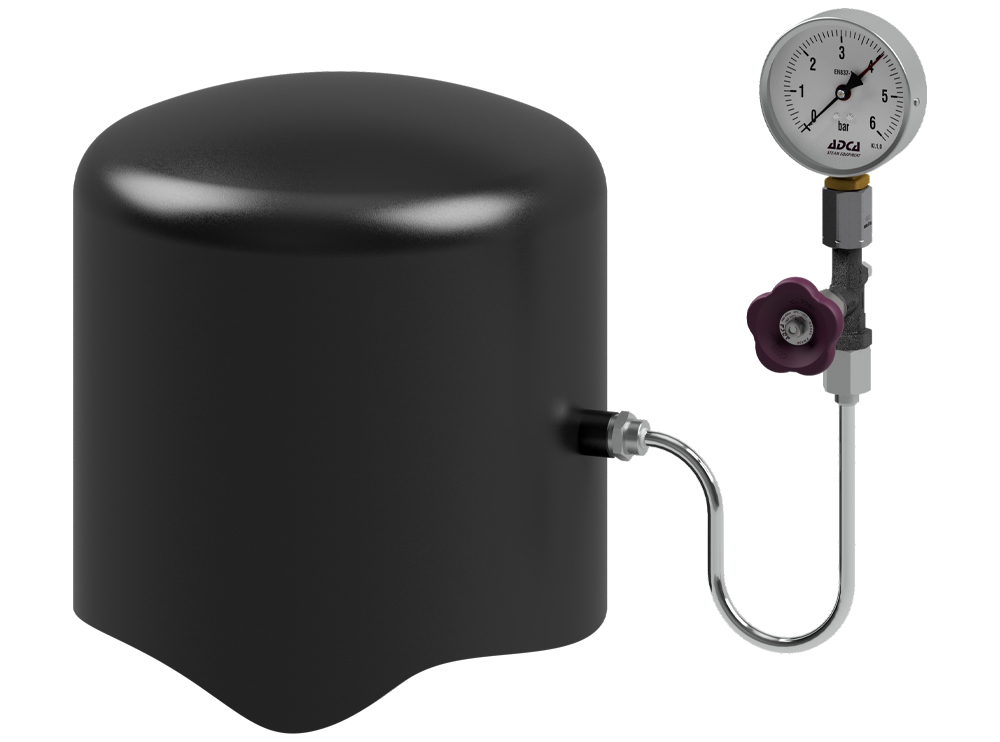

Pressure gauges may be fitted to other pressure containers such as blowdown vessels.
