Bimetal thermometer ADCA TG90R with bottom radial connection

Specifications

Use

Gases and liquids compatible with the construction
Application

Liquids,
Gases
Materials

Stainless steel, and includes a brass thermowell.
Maximum operating pressure at thermowell

6 bar
Scale range

0 to 120 ºC. Others on request.
Measuring range

10 to 110 ºC *,
* Range within which the accuracy class is guaranteed.
Maximum operating temperature

Full scale reading
Ambient temperature

- 20 to 60 ºC
Type of mounting

Radial (Bottom connection),
Supplied with thermowell.
Dial diameter / Encosure

Ø90 mm
Accuracy

±2% FS (Class 2)
IP rating

IP 54
Connections

Male threaded ISO 228 G

Bimetal thermometer ADCA TG90R with bottom radial connection

Product code: MT.7500.000

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

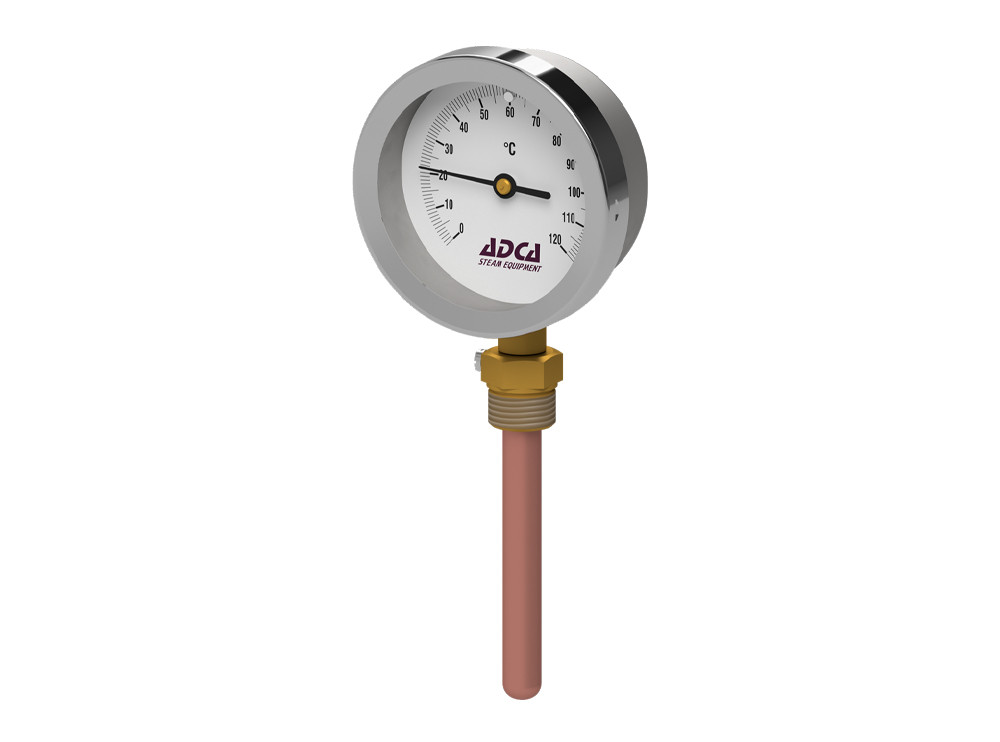

Bimetal thermometer ADCA TG90R

TG-90 - Bimetal thermometers with stainless steel enclosure Ø90 mm

Threaded bottom radial connection

The TG90 are general-purpose bimetal thermometers designed for temperature measurement in simple heating applications with liquid and gaseous media. The unit has a nominal size diameter of 90 mm, units marked in Celsius degrees, casing manufactured in stainless steel, and includes a brass thermowell.
