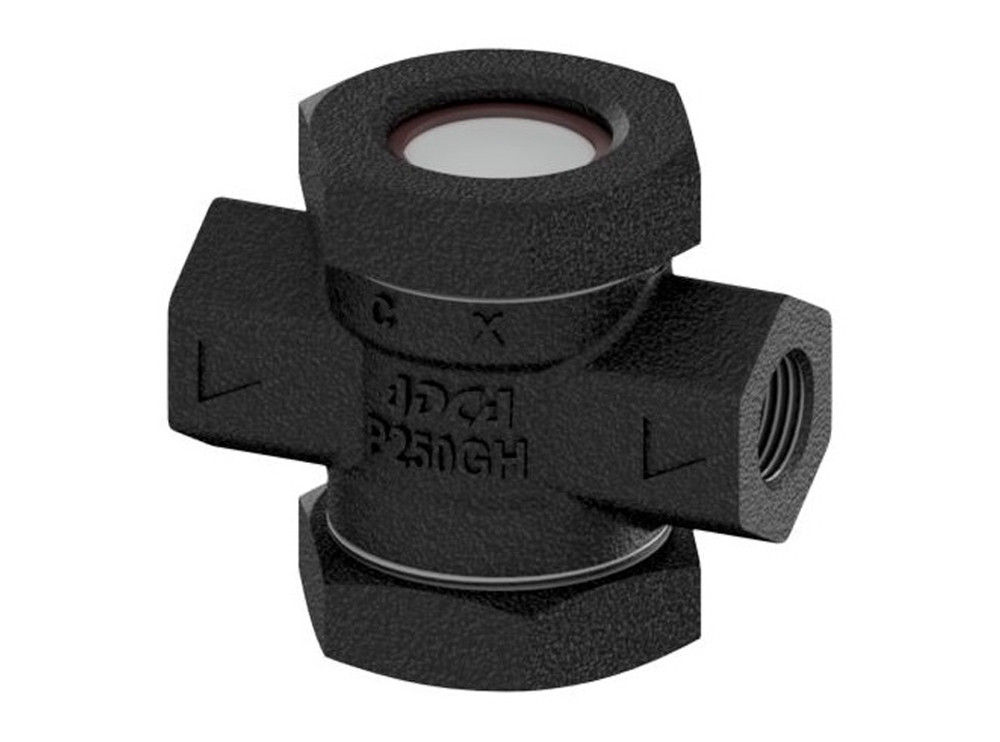

Double window sight glass ADCA DW40S PN40

Specifications

Application

Steam condensate,
Water,
Steam*,
*Mica shield discs for use with steam
Materials

Body – Carbon steel,
Glass window – Borosilicate glass
Max. operating pressure

37,1 bar at 100 ºC
Max. operating temperature

280 ºC at 28,7 bar
Connections

Female threaded ISO 7 Rp A,
Female threaded NPT, on request,
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 300, on request
Sight glass type

Double window, Rating PN 40 for sizes up to DN 25

Double window sight glass ADCA DW40S PN40

Product code: A.60.7100.000

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Double window sight glass ADCA DW40S PN40

The DW40S is a series of double window sight glasses specially designed for installation downstream of steam traps, to monitor their performance such as checking for live steam leakage or blockage. Such devices can also be used for monitoring flow conditions in other applications, particularly in pipelines with liquid medium.
