Specifications

• Application

  Steam condensate,
  Water,
  Steam*,
  *Mica shield discs for use with steam

• Materials

  Body – Resistant stainless steel,
  Glass window – Borosilicate glass

• Max. operating pressure

  37,9 bar at 100 ºC (body design PN 40),
  34,4 bar at 100 ºC (body design Class 300)

• Max. operating temperature

  250 ºC at 29,9 bar (body design PN 40),
  250 ºC at 26,6 bar (body design Class 300)

• Connections

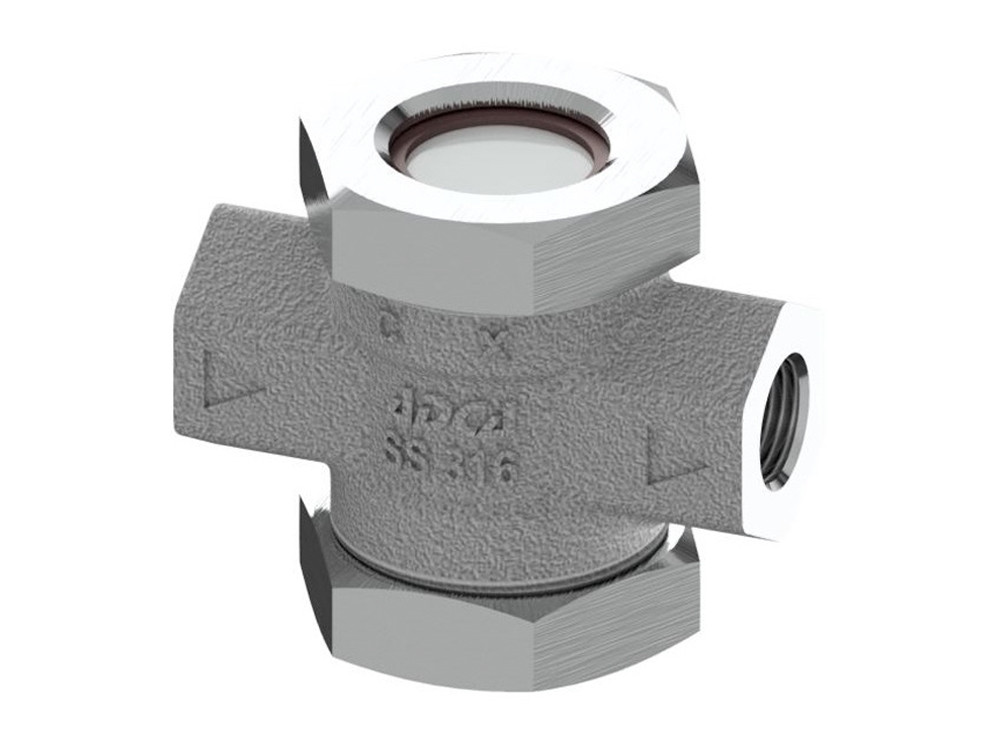

  Female threaded ISO 7 Rp A,
  Female threaded NPT, on request,

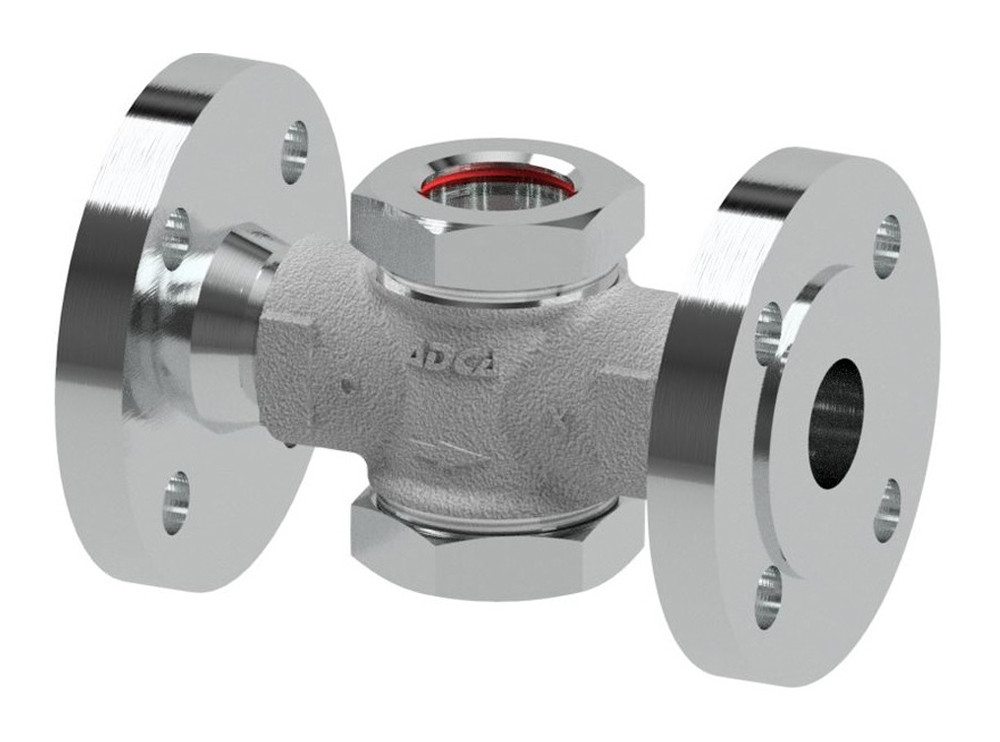

  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 300, on request

• Sight glass type

  Double window, Rating PN 40 for sizes up to DN 25
