Home → Catalogue → Pipeline ancillaries → Vacuum Breaker ADCA VB16

Valsteam ADCA

Specifications

Application

Saturated and superheated steam,
Gases compatible with the construction
Body material

Stainless steel AISI 316
Air flow

Up to 40 m³/h
Max. operating pressure

16 bar at 120 ºC
Max. operating temperature

150 ºC at 12 bar
Valve seals

Viton
Regulating range

0,05 to 0,50 bar
Connections

Male threaded ISO 228

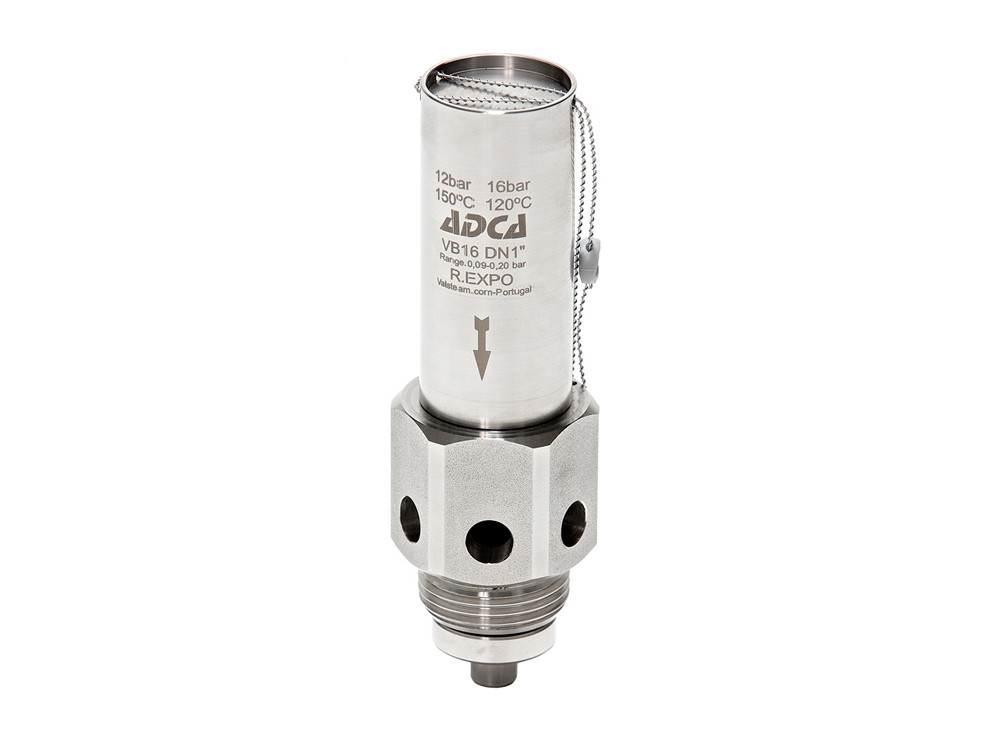

Vacuum Breaker ADCA VB16

Product code: A.57.5610.015

Out of production

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Vacuum Relief Valve / Vacuum Breaker ADCA VB16

The ADCA VB16 vacuum breakers are simple and reliable devices that automatically relieve or “break” an unwanted vacuum condition, restoring the atmospheric pressure.
These devices are particularly suitable for steam heated units of small and medium volume, such as heat exchangers, heating coils, calorifiers, jacketed kettles, steam boilers, etc.
