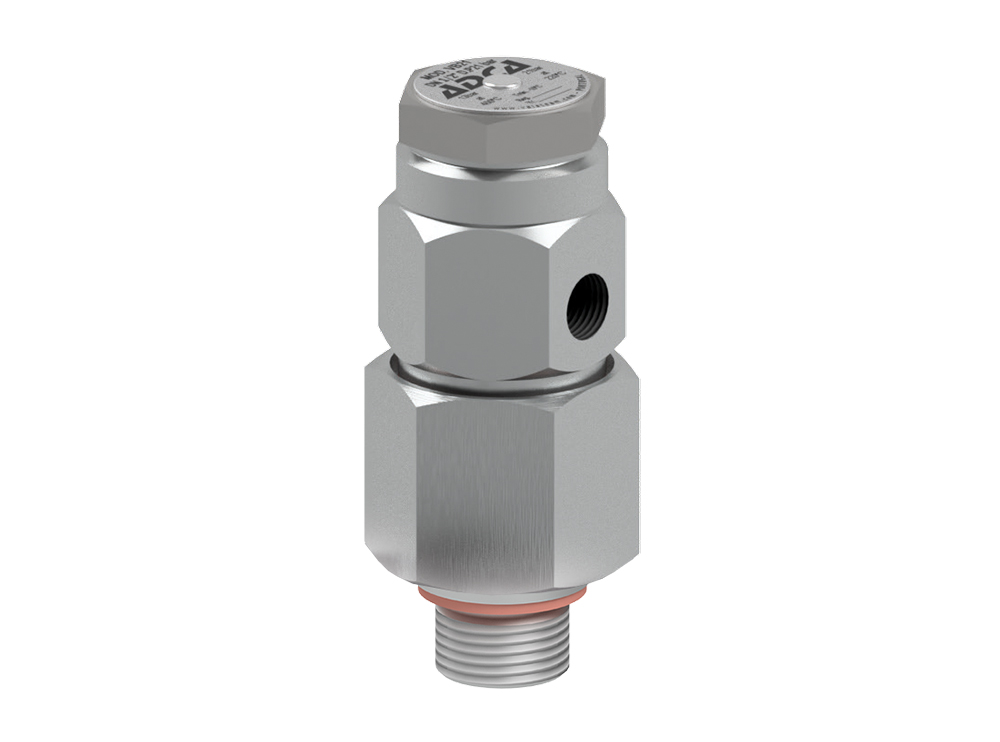

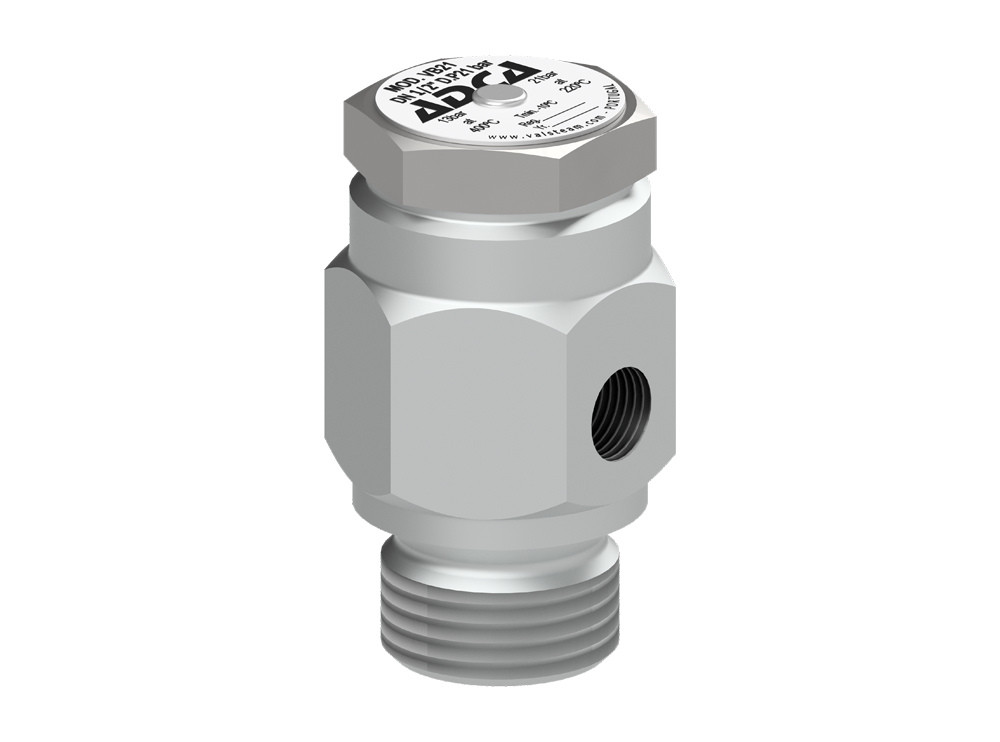

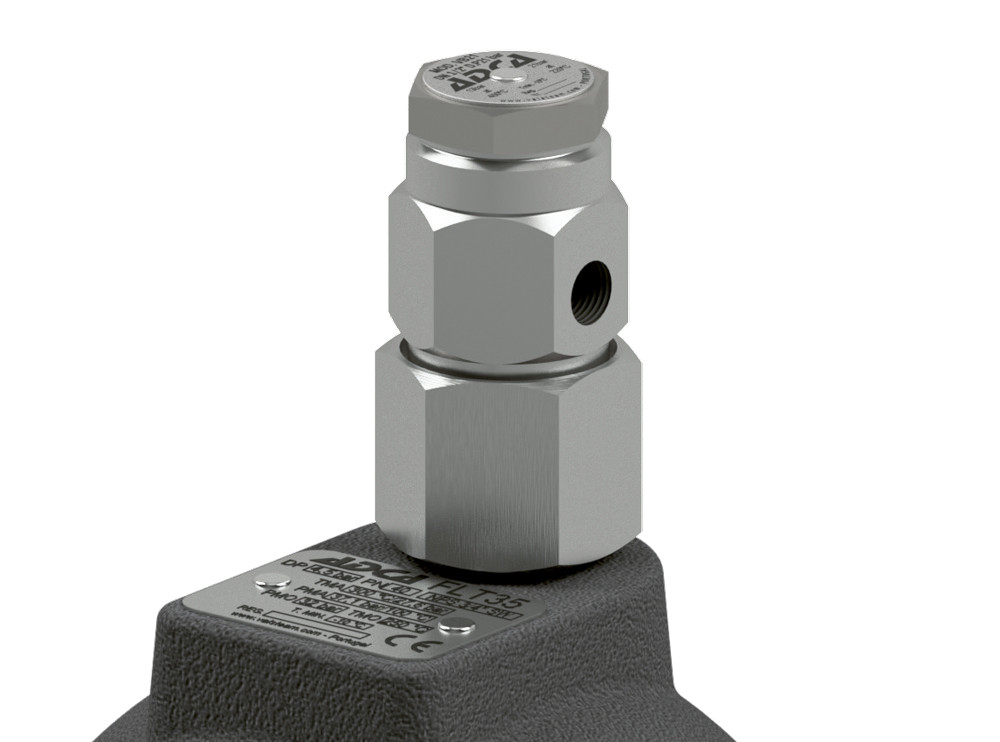

Vacuum Breaker ADCA VB21M when the steam system, male threaded
Valsteam ADCA
Specifications
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 303
-
Max. operating pressure
21 bar at 220 ºC
-
Max. operating temperature
13 bar at 400 ºC
-
ΔP required to open vacuum breaker
6,13 mbar
-
Feature
Male threaded
-
Outlet pipe connection
System: vertical connection 3/8” or 1/2”
-
Inlet pipe connection
Air inlet: horizontal connection 1/8"
-
Connections
Male threaded ISO 228 G,
Male threaded NPT, on request
Vacuum Breaker ADCA VB21M when the steam system, male threaded
Product code: A.57.5550.000
Available on request
Price according to configuration
