Ball valves with welding connection
Refine
- 10 products per page
- 25 products per page
- 50 products per page
- Relevance
- Created at
- Product code
- Name
- Available
-
ICP Valves
Product code: 142XMA
Full bore three pieces ball valve ICP 142
-
Ball port & Design
3 Piece, Full bore, Welded
-
Industry
Chemical industries,
Petrochemical industries,
Hydraulic installation,
Heating, water distribution,
Compressed air -
Body material
Stainless steel CF8M
-
Max. allowable pressure
63 bar (1/4” to 2”),
25 bar (2.1/2” to 4”) -
Seat material
PTFE seats
-
Flow rate
Max.: Kv 780 m³/h,
Min.: Kv 6,6 m³/h -
Operation
Lever handle
-
Connections
Socket weld (SW) ASME B16.11
-
-
Valsteam ADCA

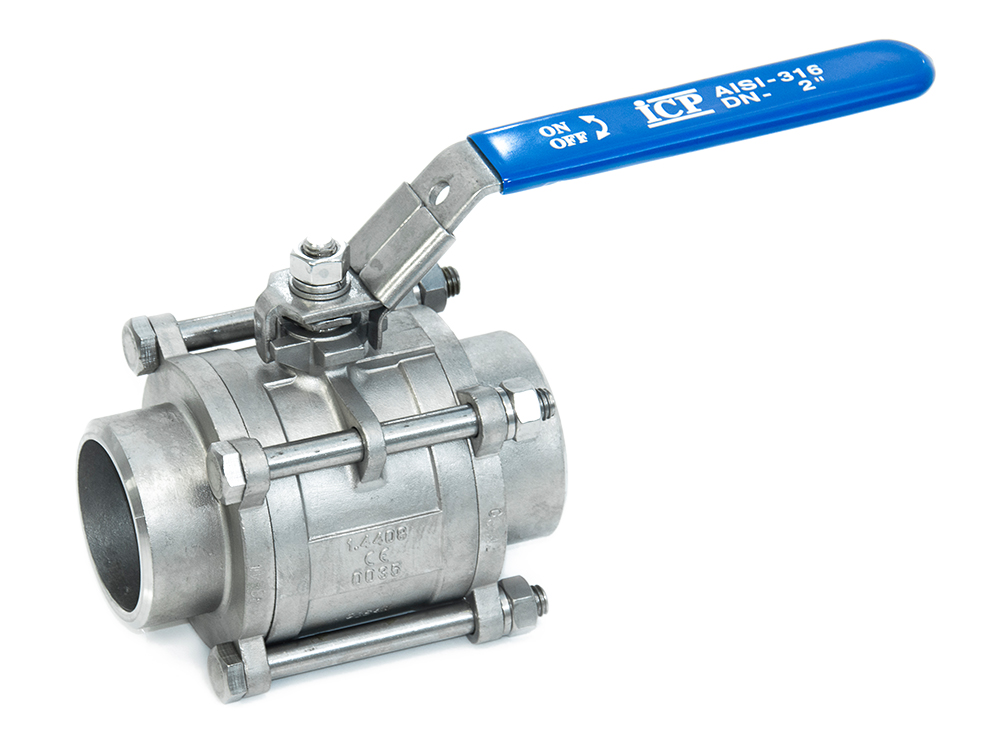

Product code: 143XMA
Full bore three pieces ball valve ICP 143
-
Ball port & Design
3 Piece, Full bore, Welded
-
Industry
Chemical industries,
Petrochemical industries,
Hydraulic installation,
Heating, water distribution,
Compressed air -
Body material
Stainless steel CF8M
-
Max. allowable pressure
63 bar (1/4” to 2”),
25 bar (2.1/2” to 4”) -
Seat material
PTFE seats
-
Flow rate
Max.: Kv 780 m³/h,
Min.: Kv 6,6 m³/h -
Operation
Lever handle
-
Connections
Butt weld (BW) ASME B16.25
-
