Valsteam ADCA
Product code: MAHXXSXXA1
ADCATrol® Manual operated linear actuator ADCA MAH
-
Actuator construction
Carbon steel construction (standard),
Stainless steel construction (special execution) -
Actuator type
Manual operated
-
Max. force
20 kN (MAH180), 33,5 kN (MAH250), 41,5 kN (MAH400)
-
Required manual pull force
from 250 to 500 (N)
-
Rated stroke
30 mm. (MAH180 , MAH250), 60 mm. (MAH400)
-
Operation temperature
from -20 ºC to +100 ºC
-
Manual control
Handwheel
-
-
Valsteam ADCA
Product code: VC.2510.220
ADCATrol® TDS and Intermittent Blowdown Controller ADCA BCS220 with steam boilers
-
Applications
TDS and intermittent blowdown control in one single unit.
-
Supply voltage
90 to 265 V AC, 10 W max. (BCS220 ),
12 to 30 V DC, 5 W max. (BCS220-LV) -
IP rating
IP 66 NEMA 4X
-
Output
Analog 0(4) to 20 mA, 750 ohms max., fully isolated to 2 kV,
Relay 2 NO volt free contacts 5A @ 30 V DC / 5A @ 250 V AC -
Input Signal
2-, 3-, or 4-wire input, temperature sensor; analog 0(4) to 20 mA; Digital*,
(*)Digital input suitable for connection to the boiler stand-by/burner contact, to reduce energy waste. -
Range selection
Internal single or auto range
-
Measuring ranges*
0 to 99,99 μS/cm up to 0 to 999,9 mS/cm,
0 to 99,99 KΩ/cm up to 0 to 9,999 MΩ/cm,
0 to 99,99 ppm up to 0 to 99,99 ppt,
(*)See conductivity, TDS and resistivity range tables for further information. -
Temperature measurement
Range: of +50 °C to +300 °C
-
-
Valsteam ADCA
Product code: VC.4050.100
ADCATrol® Resistance Temperature probes PT-100 ADCA TRPT1
-
Applications
Temperature measurement in pipelines and vessels.
-
Max. operating conditions
36,5 bar @ +400 ºC
-
Temperature range
-10 ºC to +300 ºC (Class A), others on request*
-
Ambient temperature
-20 ºC to 80 ºC
-
Sensing element
RTD three wire device according to EN 60751 Class A
-
Enclosure/head
KNE
-
IP rating
IP 66
-
Output
3 wire Pt100 to EN 60751 – Class A
-
Approvals
ATEX approved version on request
-
Sizes and connections
Male thread ISO 228 G – 1/2''
-
-
Valsteam ADCA
Product code: VC.4055.100
ADCATrol® Resistance Temperature probes PT-100 ADCA TRPT1T with analog transmitter
-
Applications
Temperature measurement in pipelines and vessels.
-
Max. operating conditions
36,5 bar @ +400 ºC
-
Temperature range
0 to +200 ºC (others programmable),
The device is calibrated from factory for a 0 to 200 ⁰C -
Temperature limits*
-10 to +300 ⁰C,
(*)The range must always fall between the device's temperature limits! -
Ambient temperature
-20 ºC to +80 ºC
-
Sensing element
RTD three wire device according to EN 60751 Class A
-
Enclosure/head
KNE
-
IP rating
IP 66
-
Output
4 to 20 mA (2-wire)
-
Transmitter
2 wire 4 to 20mA temperature transmitter
-
Transmiter thermal drift deviation
Input 0,06 ºC / 10 ºC ,
Output 0,02% of span / 10 ºC -
Power supply
10 to 30 V DC
-
Max. loop resistance
681 Ω at 24 V DC, 954 Ω at 30 V DC
-
Approvals
ATEX approved version on request
-
Sizes and connections
Male thread ISO 228 G – 1/2''
-
-
Valsteam ADCA
Product code: VC.5021.015
ADCATrol® TDS / Conductivity probe ADCA SPS21 In-line
-
Applications
Measure conductivity of superheated boiler water, condensate and feedwater.
-
Max. operating pressure
32 bar
-
Max. operating temperature
+239 ºC
-
Max. ambient temperature
+100 ºC
-
Min. distance to other metallic surfaces
20 mm.
-
Type of protection
IP 65
-
Dimensions & Mounting
with a 41.5 mm probe rod
-
Cable entry
M16 x 1,5 (PG 11)
-
Sizes & Connections
Male threaded ISO 7 R 1/2''
-
-
Valsteam ADCA
Product code: VC.5121.0XX
ADCATrol® TDS/conductivity probe ADCA SPS21 for sandwiching between flanges
-
Applications
Measure conductivity of superheated boiler water, condensate and feedwater.
-
Max. operating pressure
32 bar
-
Max. operating temperature
+239 ºC
-
Max. ambient temperature
+100 ºC
-
Min. distance to other metallic surfaces
20 mm.
-
Type of protection
IP 65
-
Dimensions & Mounting
with a 41.5 mm probe rod
-
Cable entry
M16 x 1,5 (PG 11)
-
Sizes & Connections
flange chamber DN20x1/2" PN40,
flange chamber DN25x1/2" PN40
-
-
Valsteam ADCA
Product code: 6DR71010
ADCATrol® Digital Electro-Pneumatic Positioner ADCA PS100 with polycarbonate lid
-
Housing material
Aluminium body,
and polycarbonate lid with inspection window -
Positioner Type
Electro-Pneumatic
-
Product or Component Type
Digital valve Control, Valve Positioner, display
-
Accession
Mounting bracket
-
Operation temperature
from -20 to +80 °C
-
Analog Input
Nominal op. range 4 to 20 mA
-
Max. pressure
7 bar
-
Input pressure
1,4 to 7 bar
-
IP rating
IP 66 NEMA 4X
-
Explosion protection
Without
-
Supply voltage
24 V DC (12 to 30 V DC)
-
Communication link
Analog signal 4 to 20 mA,
HART
-
-
Valsteam ADCA
Product code: P.TZIDC
ADCATrol® Intelligent Electro-Pneumatic Positioner ADCA TZIDC
-
Housing material
Aluminium enclosure,
and lid without inspection window -
Positioner Type
Electro-Pneumatic
-
Product or Component Type
Digital valve Control, Valve Positioner,
mechanical position indicator, display -
Accession
Mounting bracket
-
Operation temperature
from -40 to +85 °C
-
Analog Input
Nominal op. range 4 to 20 mA
-
Input pressure
1,4 to 6 bar
-
IP rating
IP 65 (IP 66 on request) NEMA 4X
-
Supply voltage
24 V DC (11 to 30 V DC)
-
Communication link
TZIDC – Analog signal 4 to 20 mA (Standard),
TZIDC – Standard unit, with optional HART comm,
TZIDC-110 – Incl. PROFIBUS PA communication,
TZIDC-120 – Incl. FOUNDATION Fieldbus comm. -
Explosion protection
TZIDC – Standard unit, without explosion protection,
ATEX II 2 G Ex ia IIC T6 resp. T4 Gb,
IECEx ia IIC T6 resp. T4 Gb,
FM/CSA -
SIL
Yes
-
-
Valsteam ADCA
Product code: 6DR71011

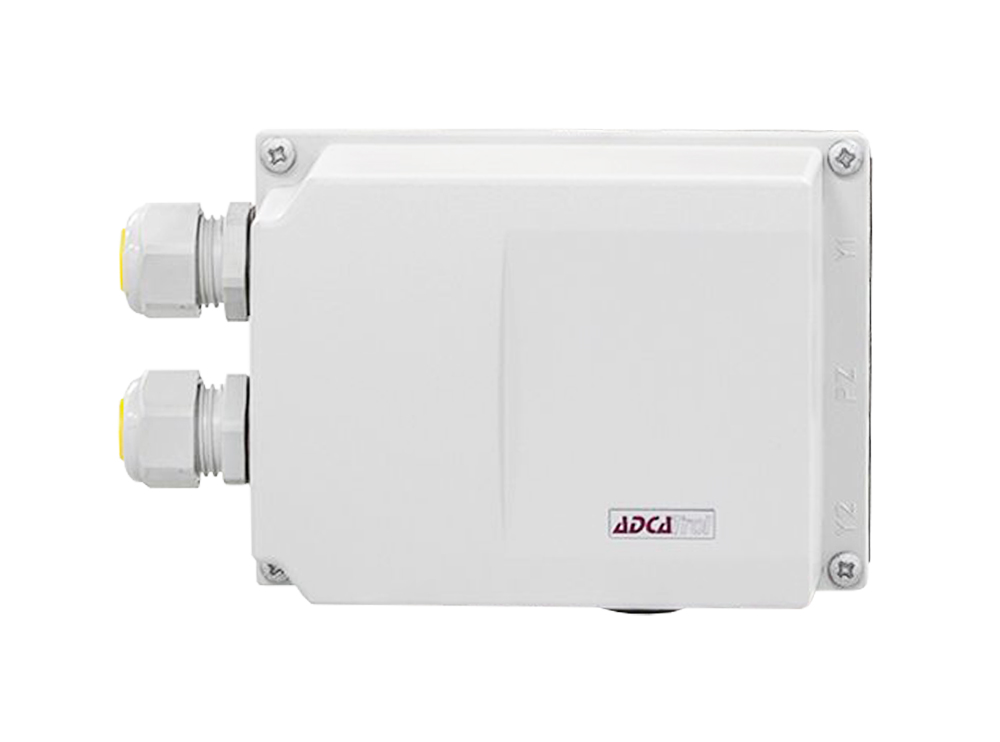

ADCATrol® Digital Electro-Pneumatic Positioner ADCA PS100-EX Safe Ex ia, with flameproof enclosure
-
Housing material
Aluminium body,
and lid without inspection window -
Positioner Type
Electro-Pneumatic
-
Product or Component Type
Digital valve Control, Valve Positioner,
Display, Safe Ex ia -
Accession
Mounting bracket
-
Operation temperature
-30 ... +80 °C, Option: -40 °C
-
Analog Input
Nominal op. range 4 to 20 mA
-
Max. pressure
7 bar
-
Input pressure
1,4 to 7 bar
-
IP rating
IP 66 NEMA 4X
-
Explosion protection
ATEX, IECEx – Ex i, Ex e, Ex t,
FM, CSA – IS, NI/I/2, DIP -
SIL
Yes
-
Supply voltage
24 V DC (12 to 30 V DC)
-
Communication link
Analog signal 4 to 20 mA,
HART, PROFIBUS PA, FF
-
-
Valsteam ADCA
Product code: V18348

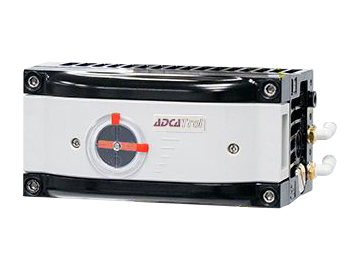

ADCATrol® Intelligent Electro-Pneumatic Positioner ADCA TZIDC-200 with flameproof enclosure
-
Housing material
Aluminium enclosure,
without transparent window for LCD -
Positioner Type
Electro-Pneumatic
-
Product or Component Type
Digital valve Control, Valve Positioner,
mechanical position indicator, display,
Safe Ex d, fail safe, fail freeze -
Accession
Mounting bracket
-
Operation temperature
from -40 to +85 °C
-
Analog Input
Nominal op. range 4 to 20 mA
-
Input pressure
1,4 to 6 bar
-
IP rating
IP 66 NEMA 4X
-
Supply voltage
24 V DC (11 to 30 V DC)
-
Communication link
Analog signal 4 to 20 mA,
and HART communication -
Explosion protection
ATEX Ex d II C T4/T5/T6 Gb or,
IECEx Ex d II C T4/T5/T6 Gb -
SIL
Yes
-
